Detailed Search (Lens Selector)

Search for the optimal product based on camera settings and locations.
The minimum object distance (MOD) is not taken into account in the calculation. For the MOD of each lens, please refer to "Working Distance (WD)" in the product information.

Sensor size

Select the sensor size from the pull-down box or enter the size directly (H = horizontal, V = vertical).
Sensor size
or
mm
mm

Other Parameters

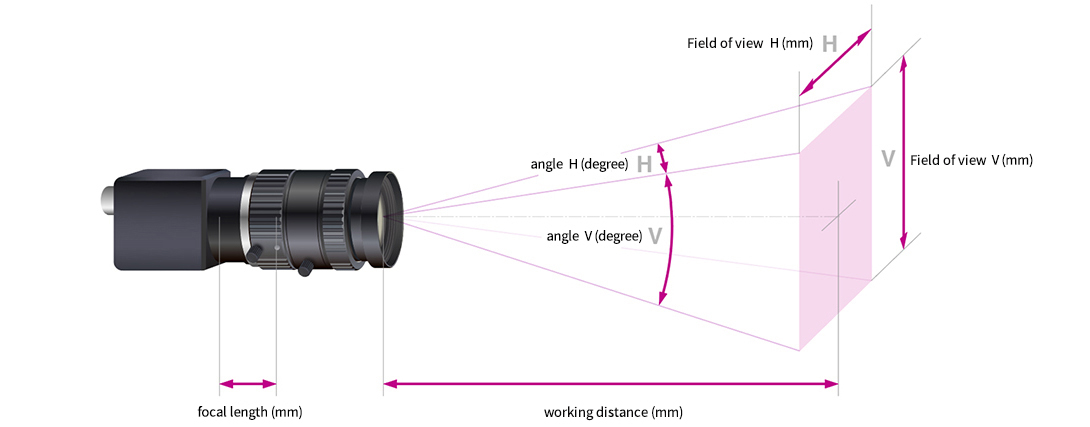

Once you have chosen the sensor size, select either Focal Length Mode or Magnification Mode.

Once you have chosen the focal length or angle, enter the working distance or Field of view to search.
search image
focal length
mm
angle
degree
degree
working distance
mm
Field of view
mm
mm
Enter the magnification or Field of view to search.
search image
Magnification x
or
Field of view
mm
mm
Search results

You can download drawings and technical information
if you scroll to the right of the table.

left
Series
Model name
Sensor size
Focal length
F-Number
Mount
Iris
IR Corrective
Specification
CAD data
Technical data

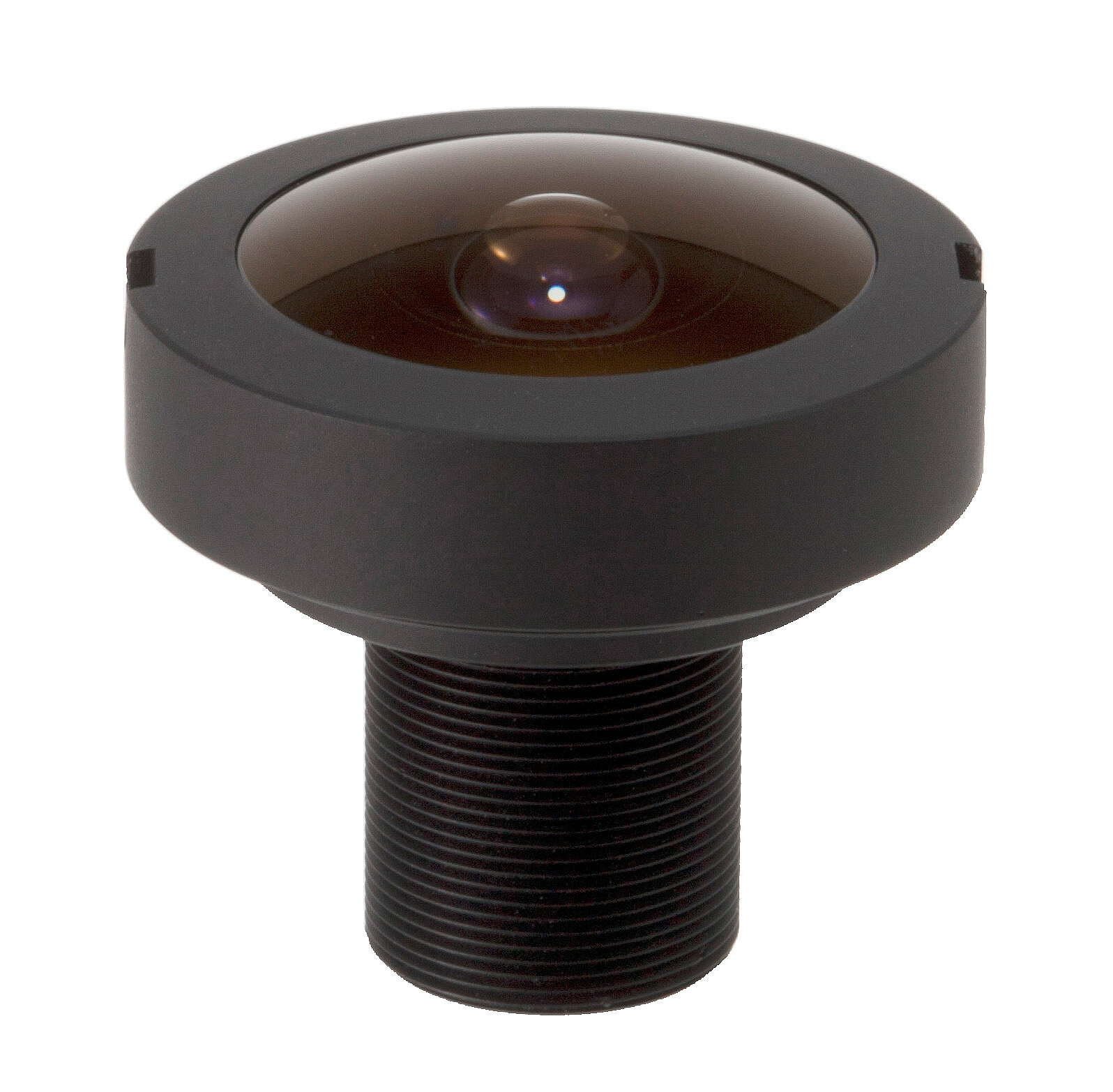

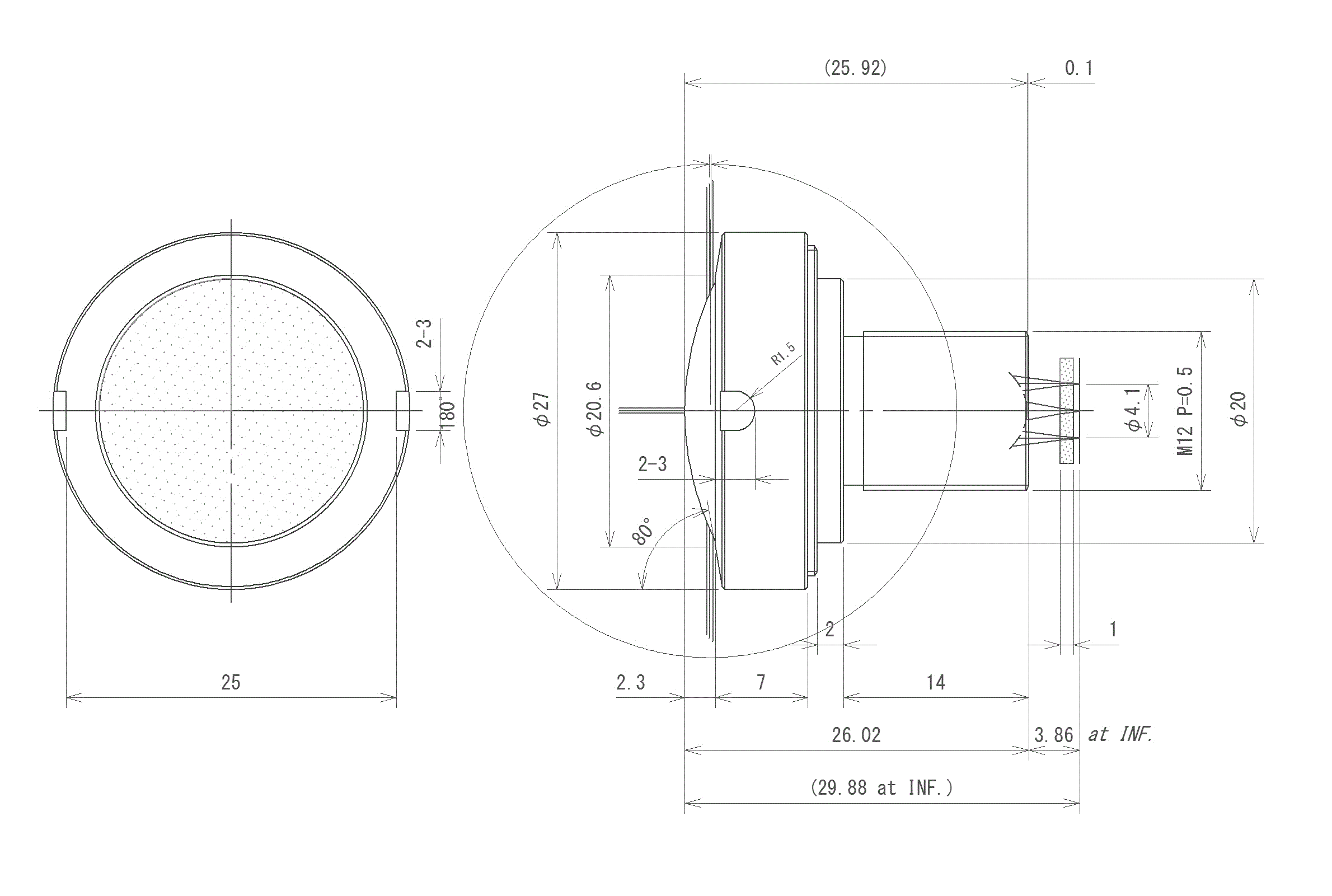

Fisheye Series L1028KDRW 1/2.5" 1.05mm 2.8 M12 FIX -
2D DXF
3D STEP IGES

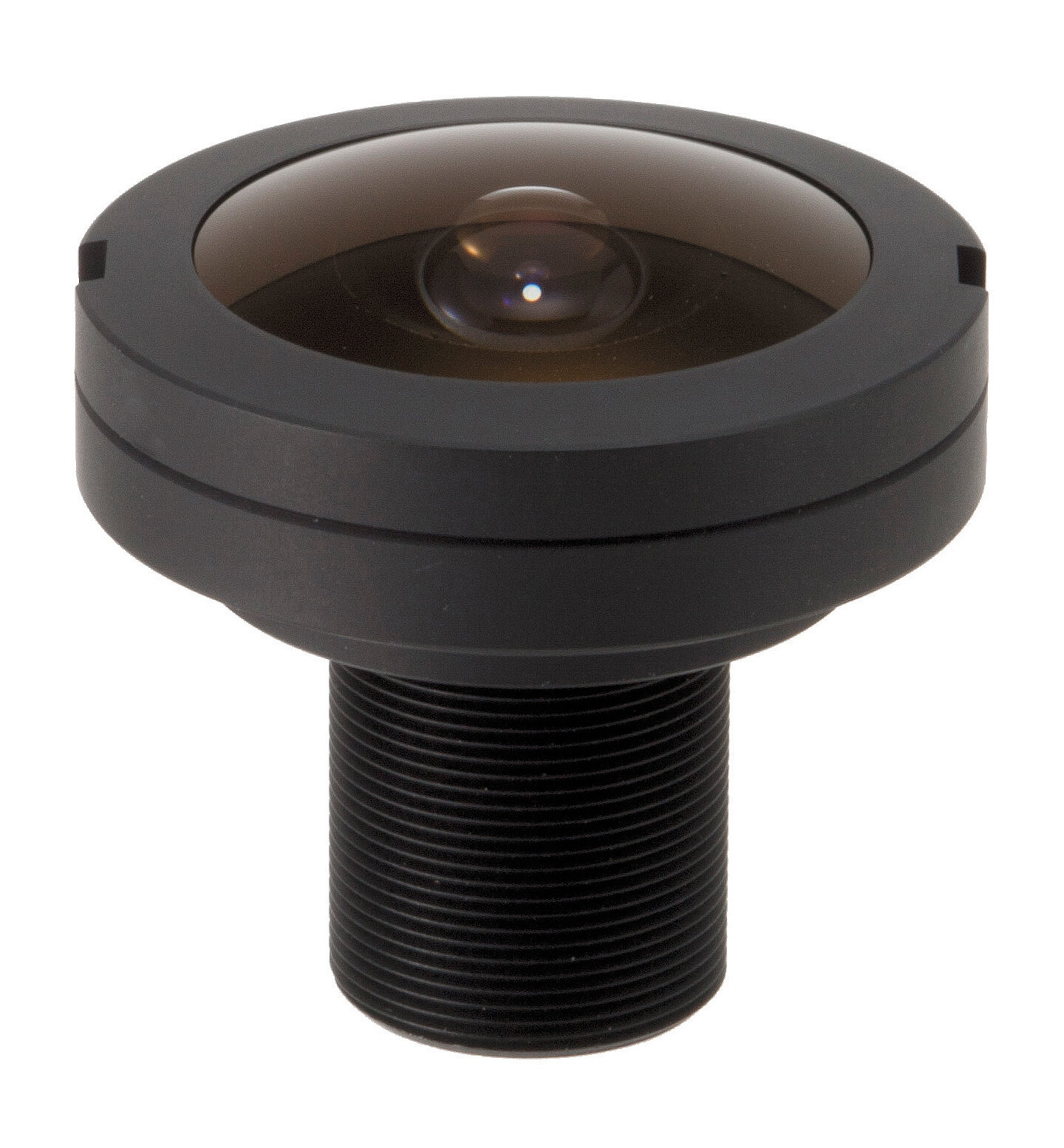

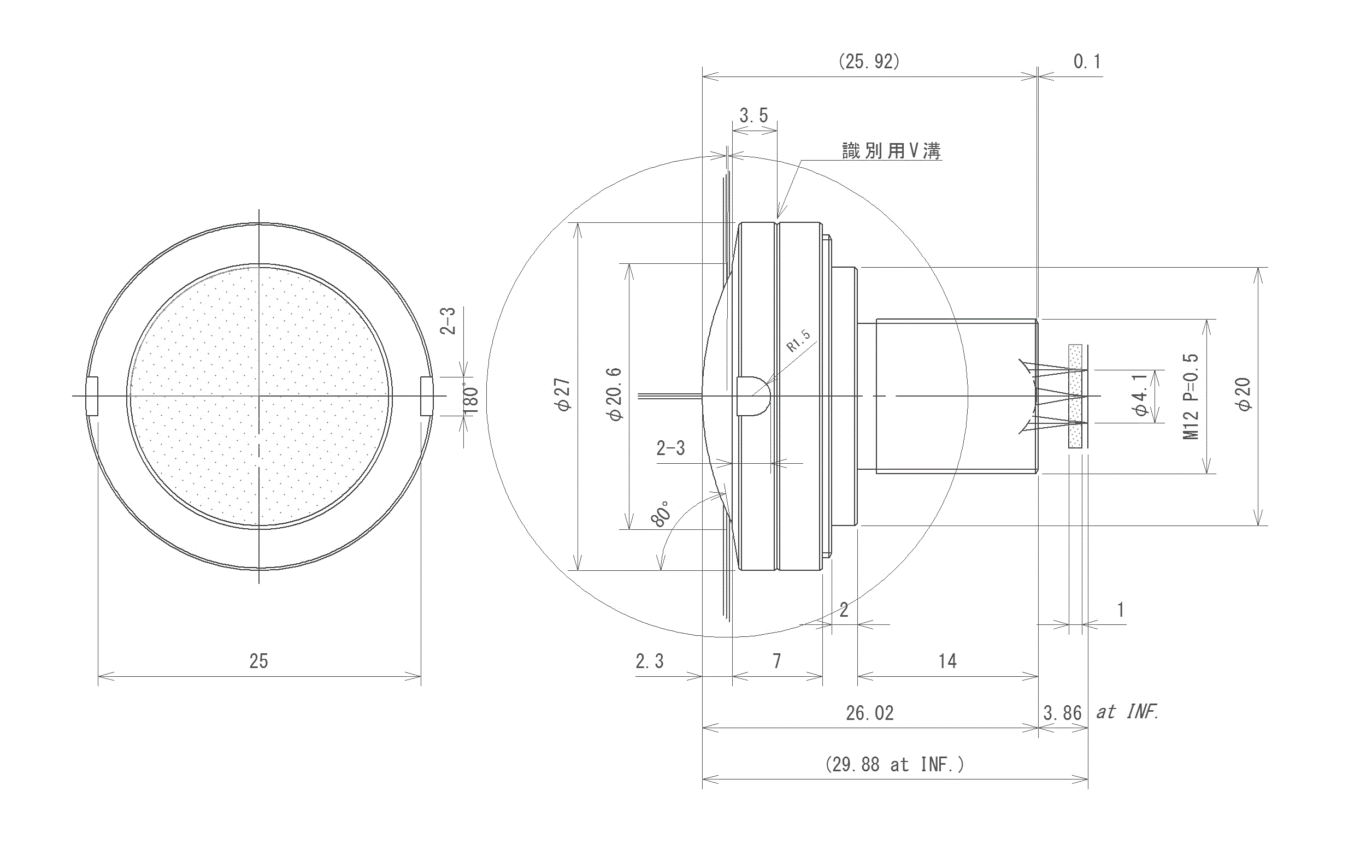

Fisheye Series L1028KRW 1/2.5" 1.05mm 2.8 M12 FIX -
2D DXF
3D STEP IGES
LWIR Wide-angle Series 9.1mm f/1.0 QVGA (12µm) 9.1mm 1.0 M16 FIX -
2D DXF

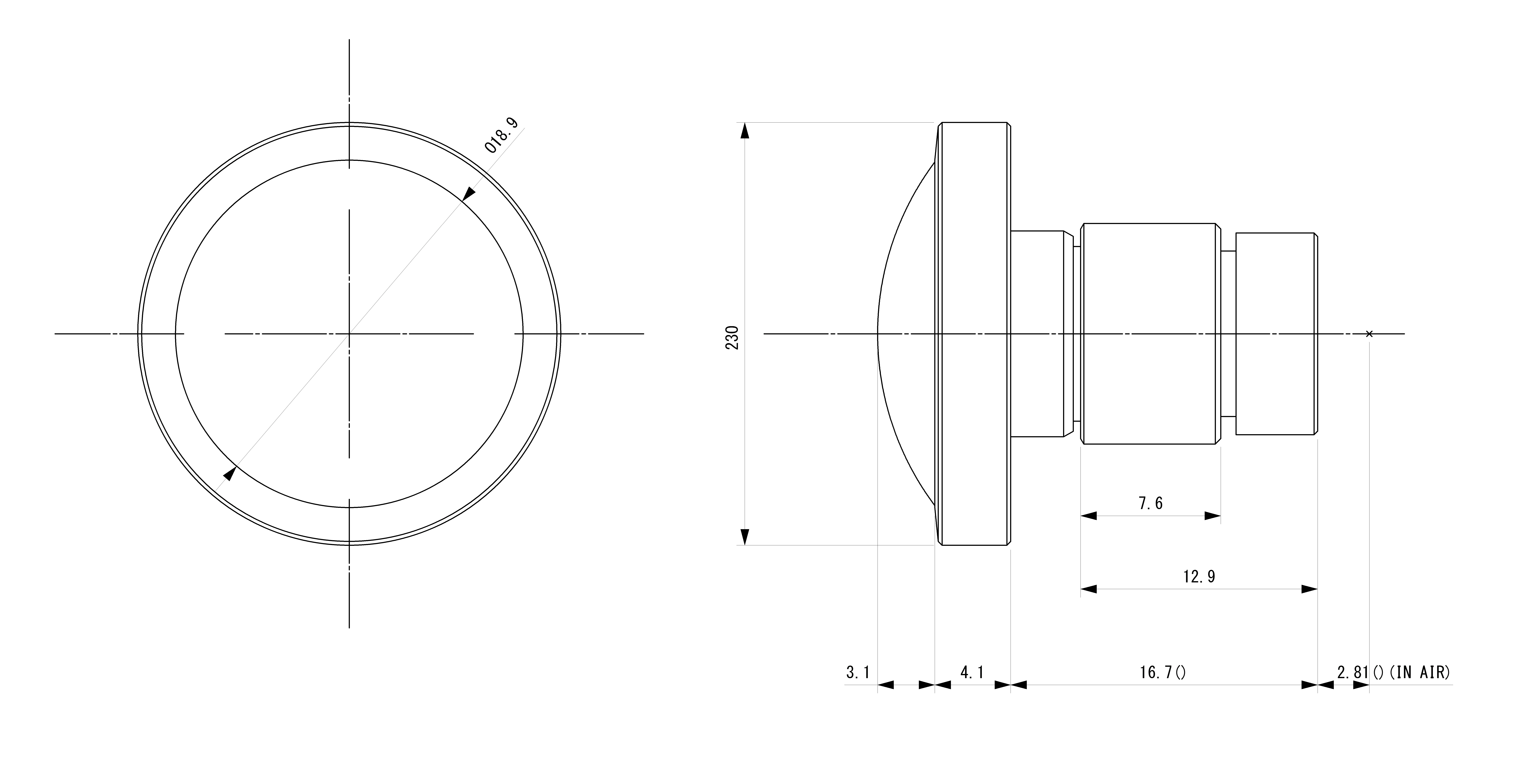

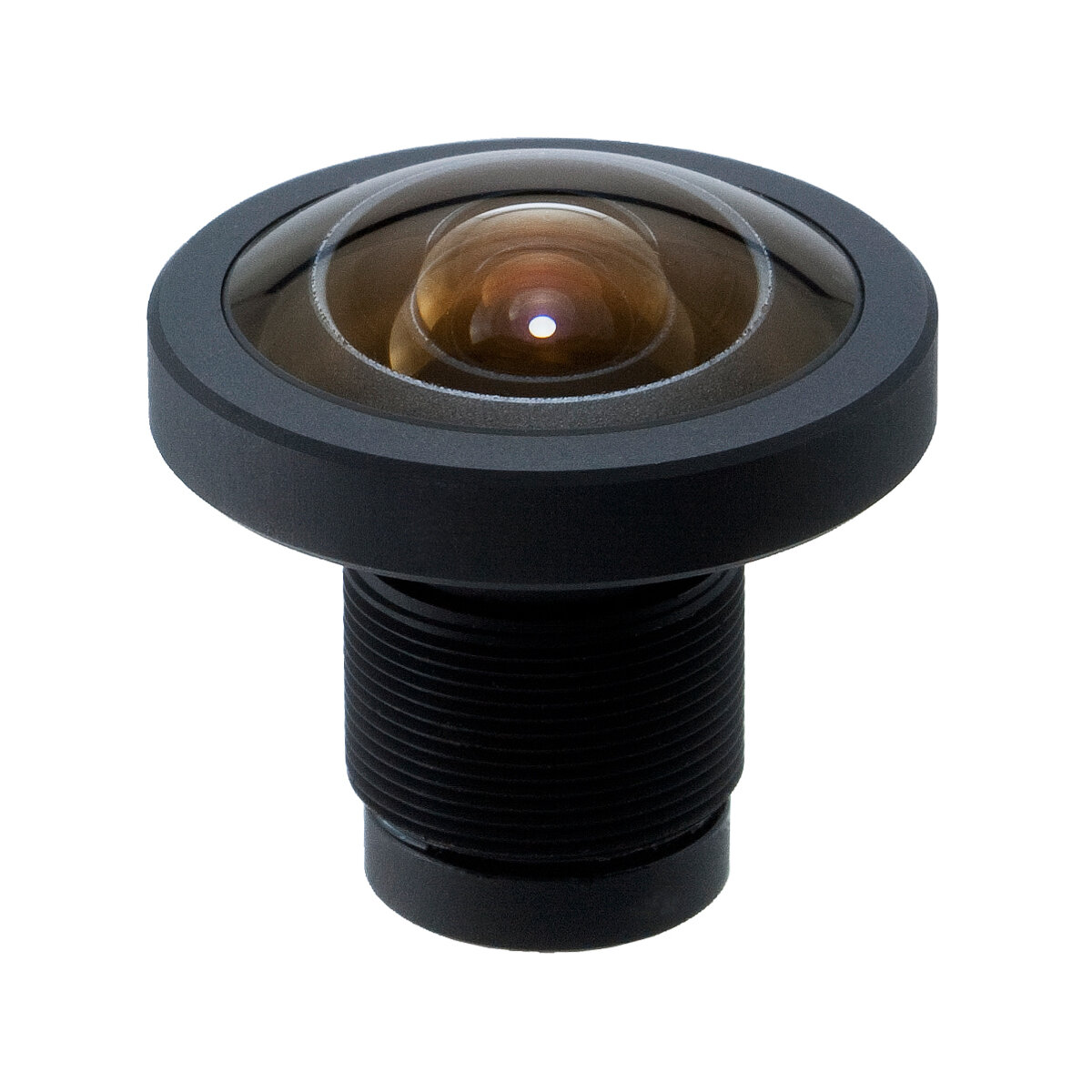

Fisheye Series E1628KF3RY 1/1.7" 1.6mm 2.8 M12 FIX -
2D DXF
3D STEP IGES

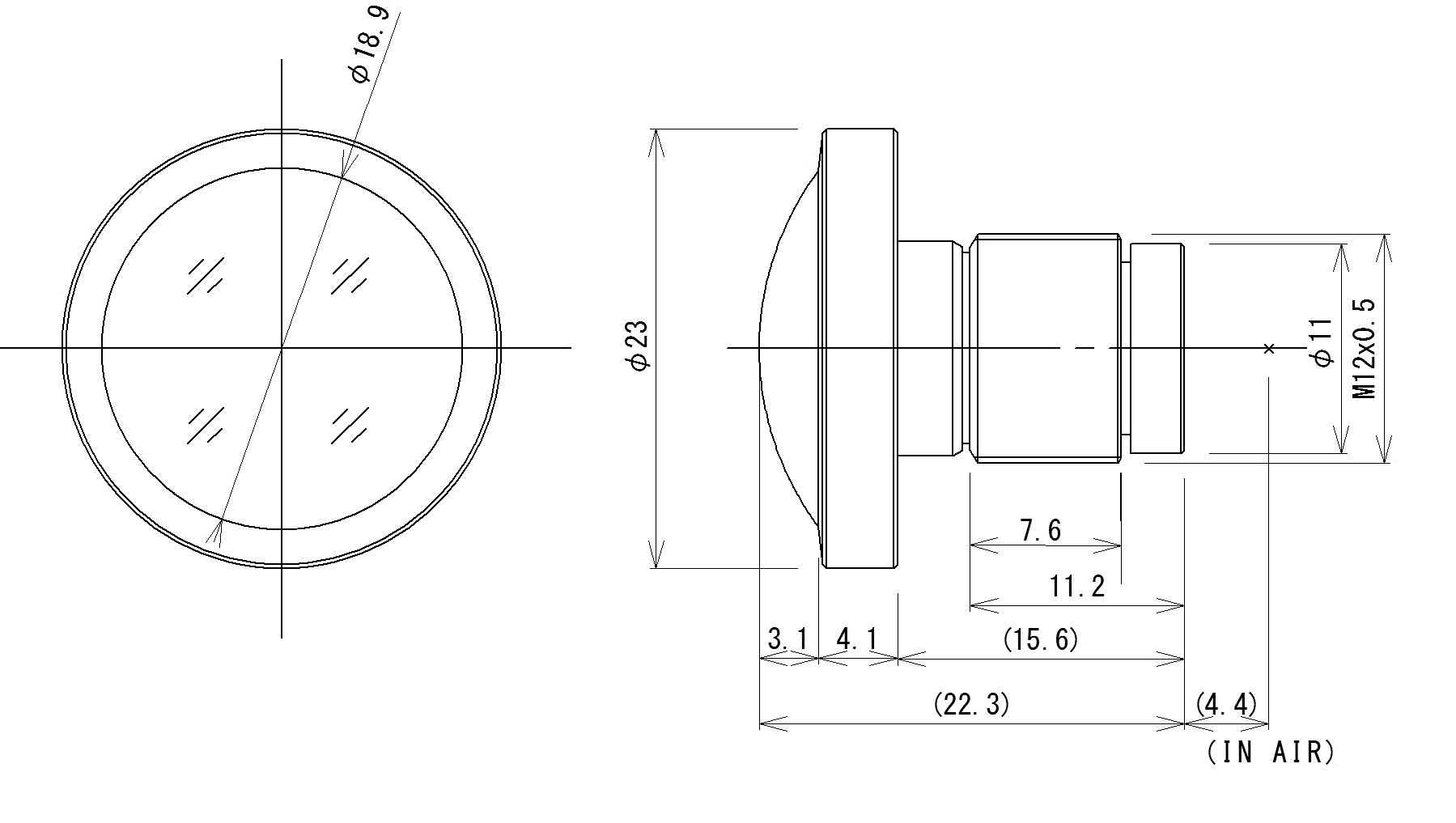

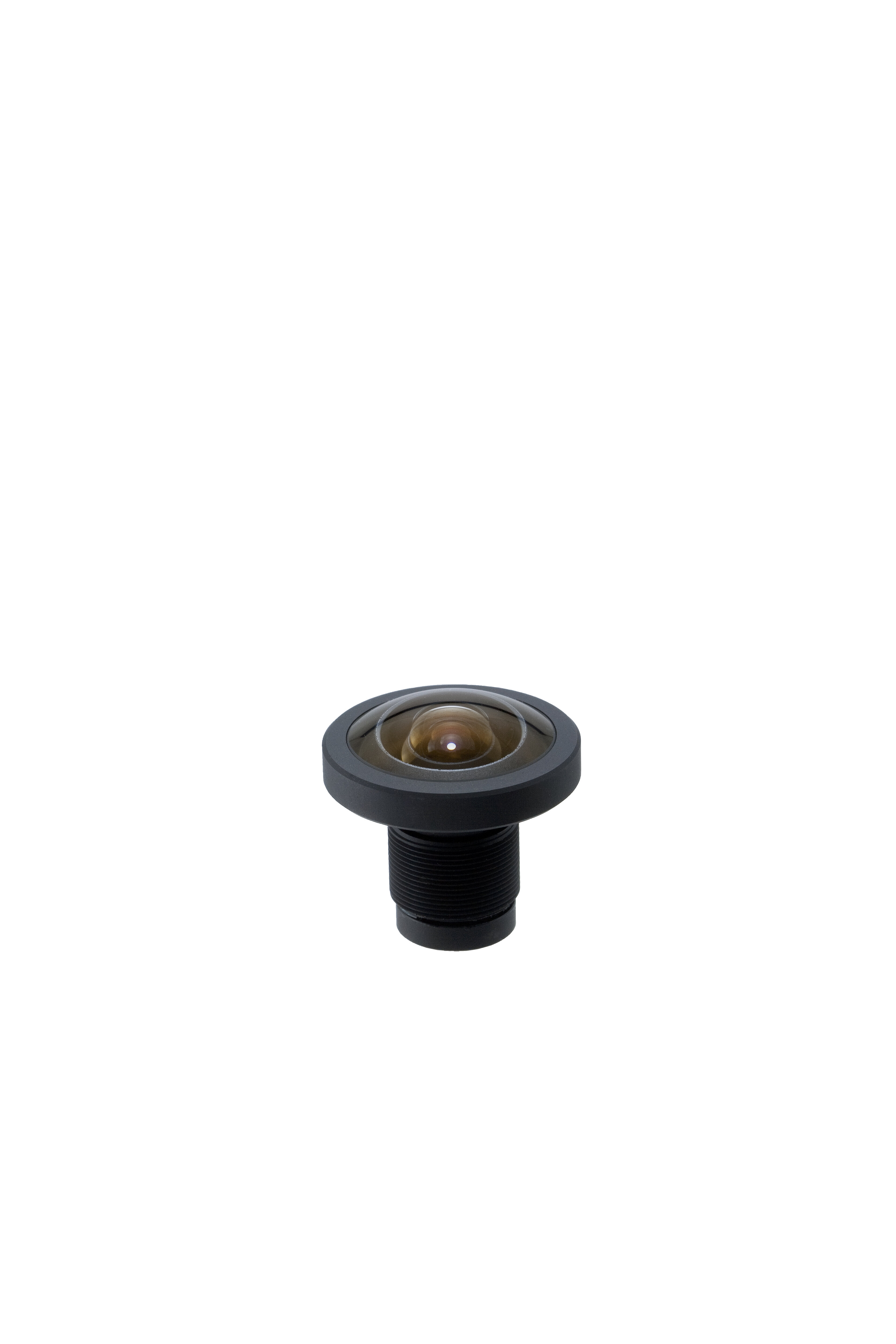

Fisheye Series E1628KRY 1/1.7" 1.6mm 2.8 M12 FIX -
2D DXF
3D STEP IGES

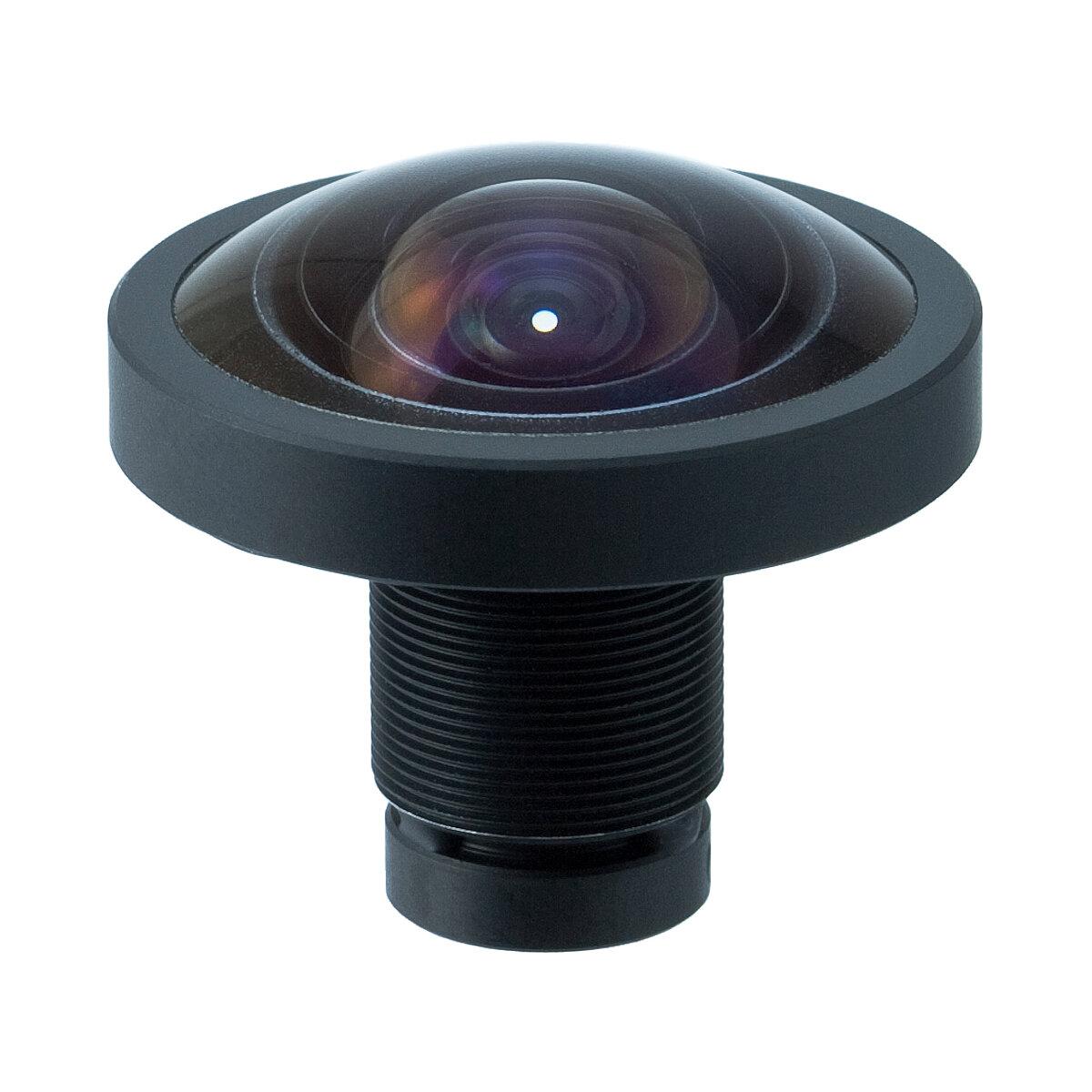

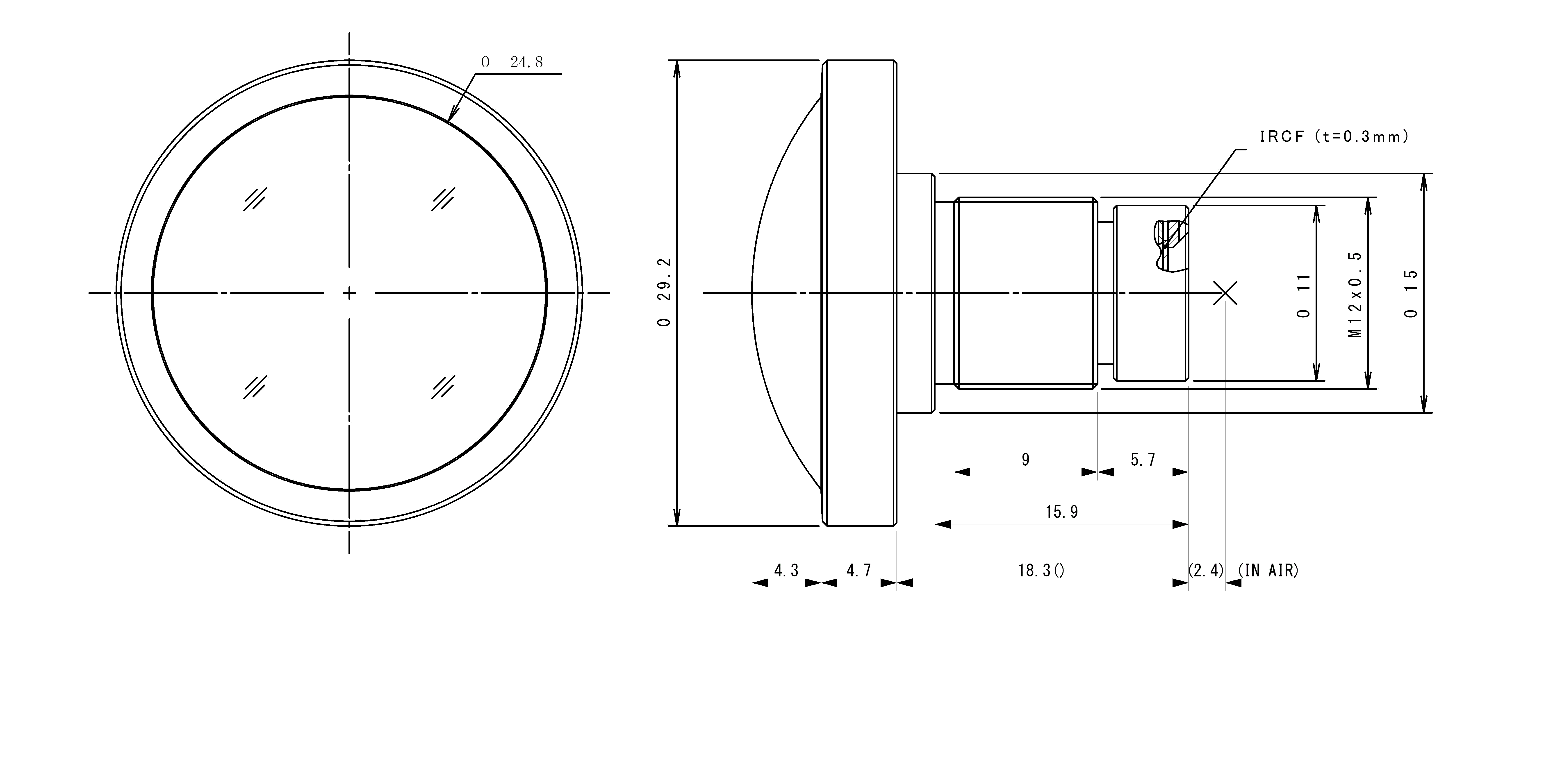

Fisheye Series E1222KF3RY 1/1.7" 1.2mm 2.2 M12 FIX -
2D DXF
3D STEP IGES

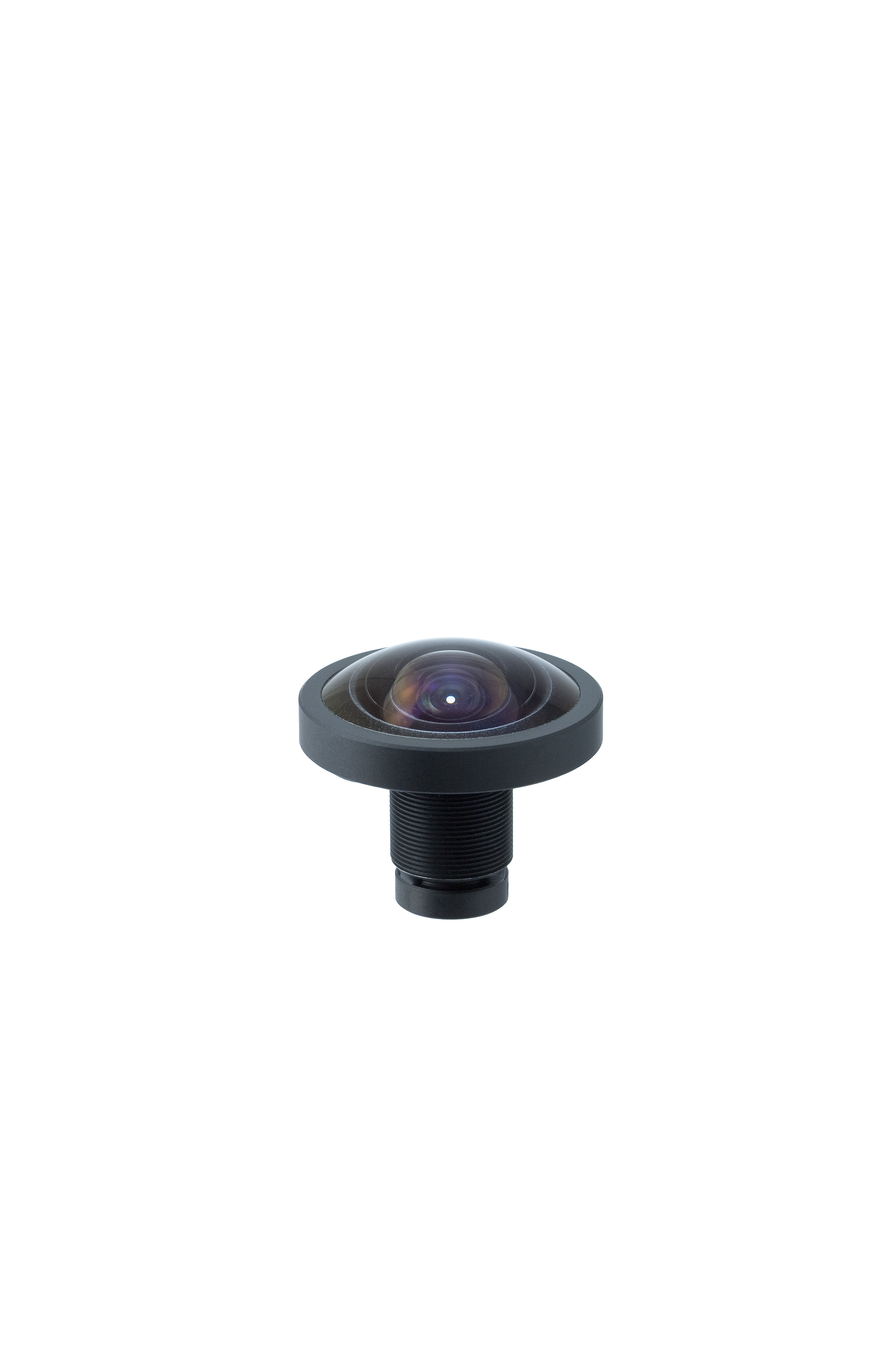

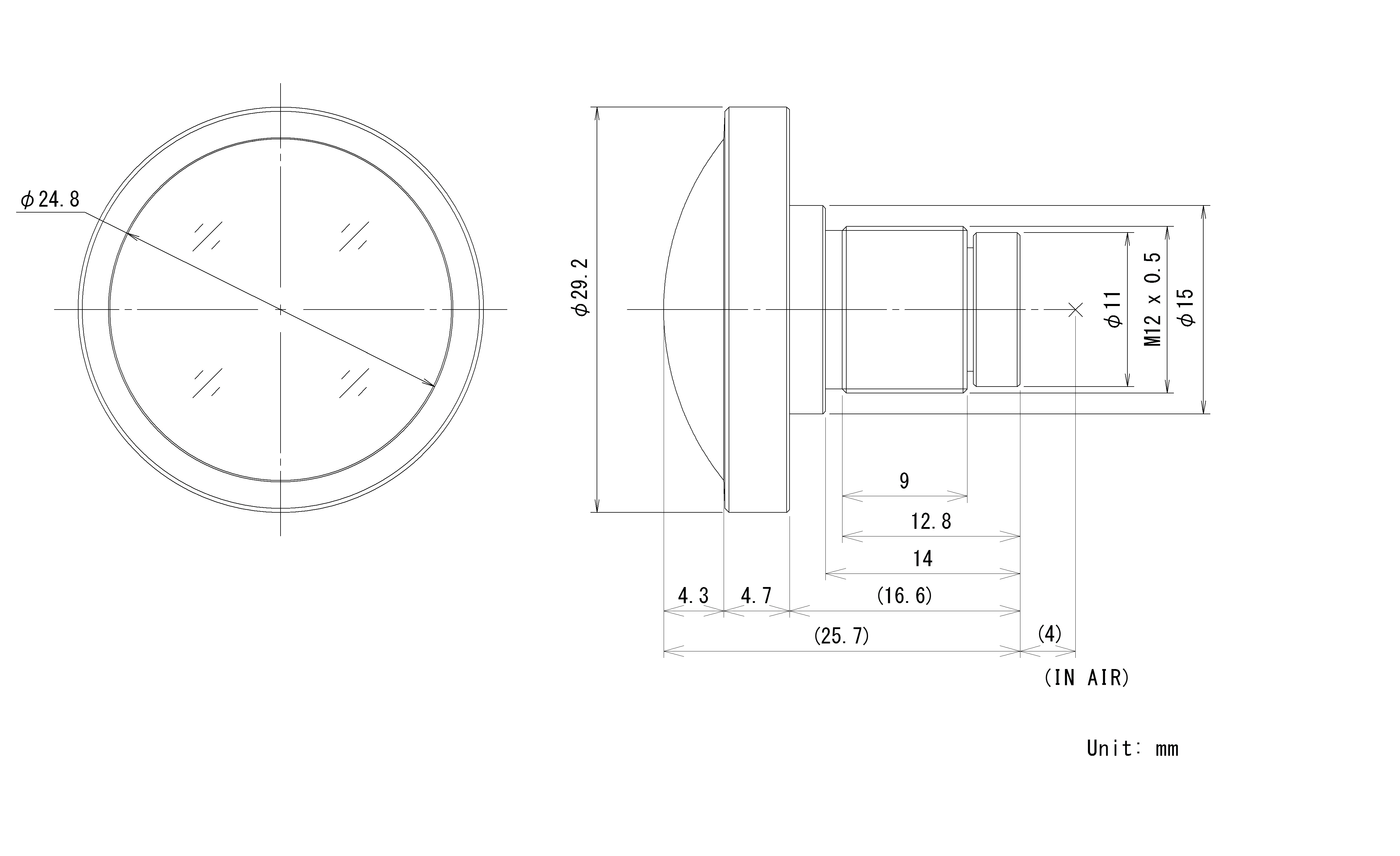

Fisheye Series E1222KRY 1/1.7" 1.2mm 2.2 M12 FIX -
2D DXF
3D STEP IGES
LWIR Wide-angle Series 3.8mm f/1.25 VGA (12µm) 3.8mm 1.25 M20 FIX -
2D DXF

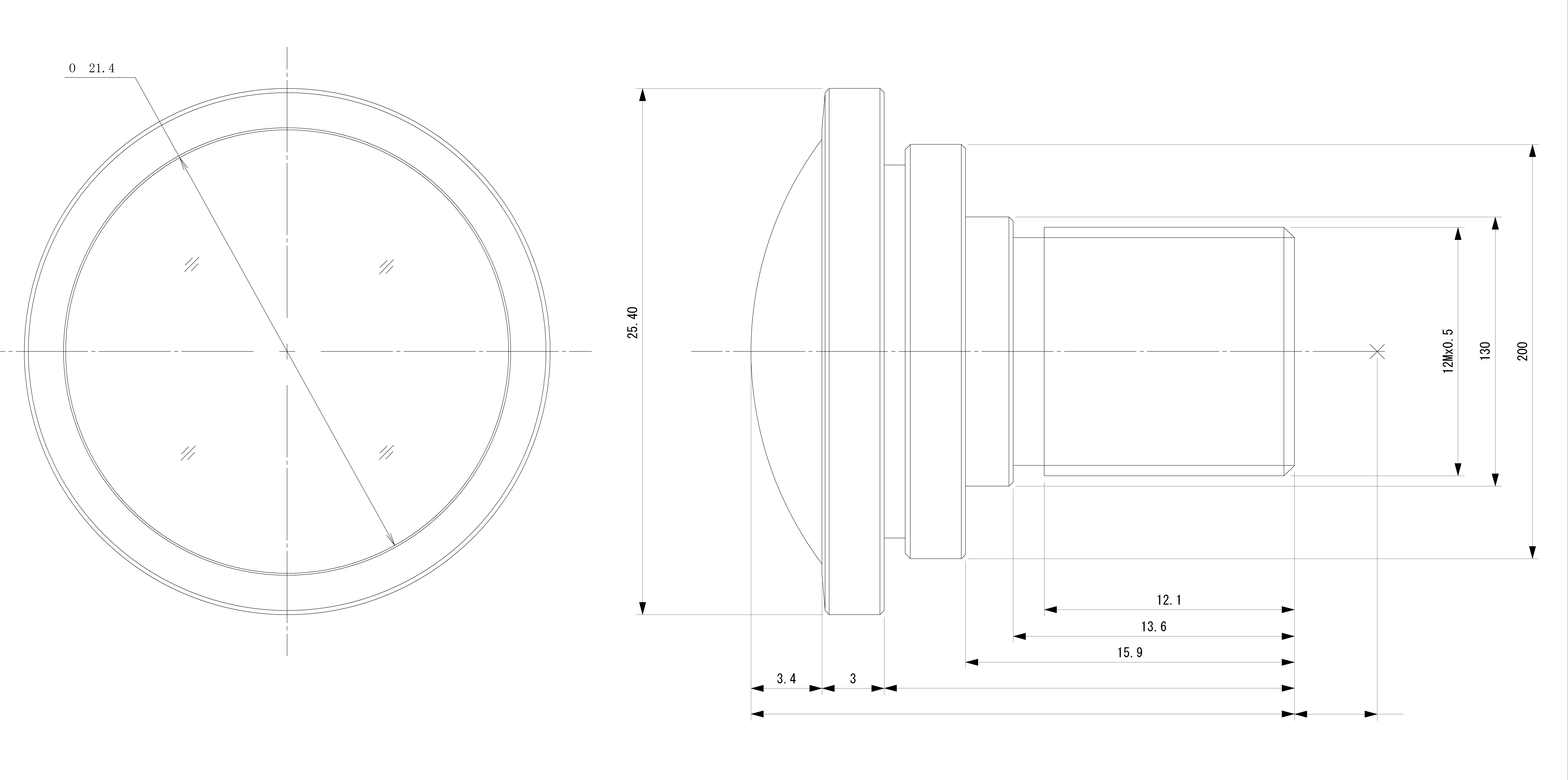

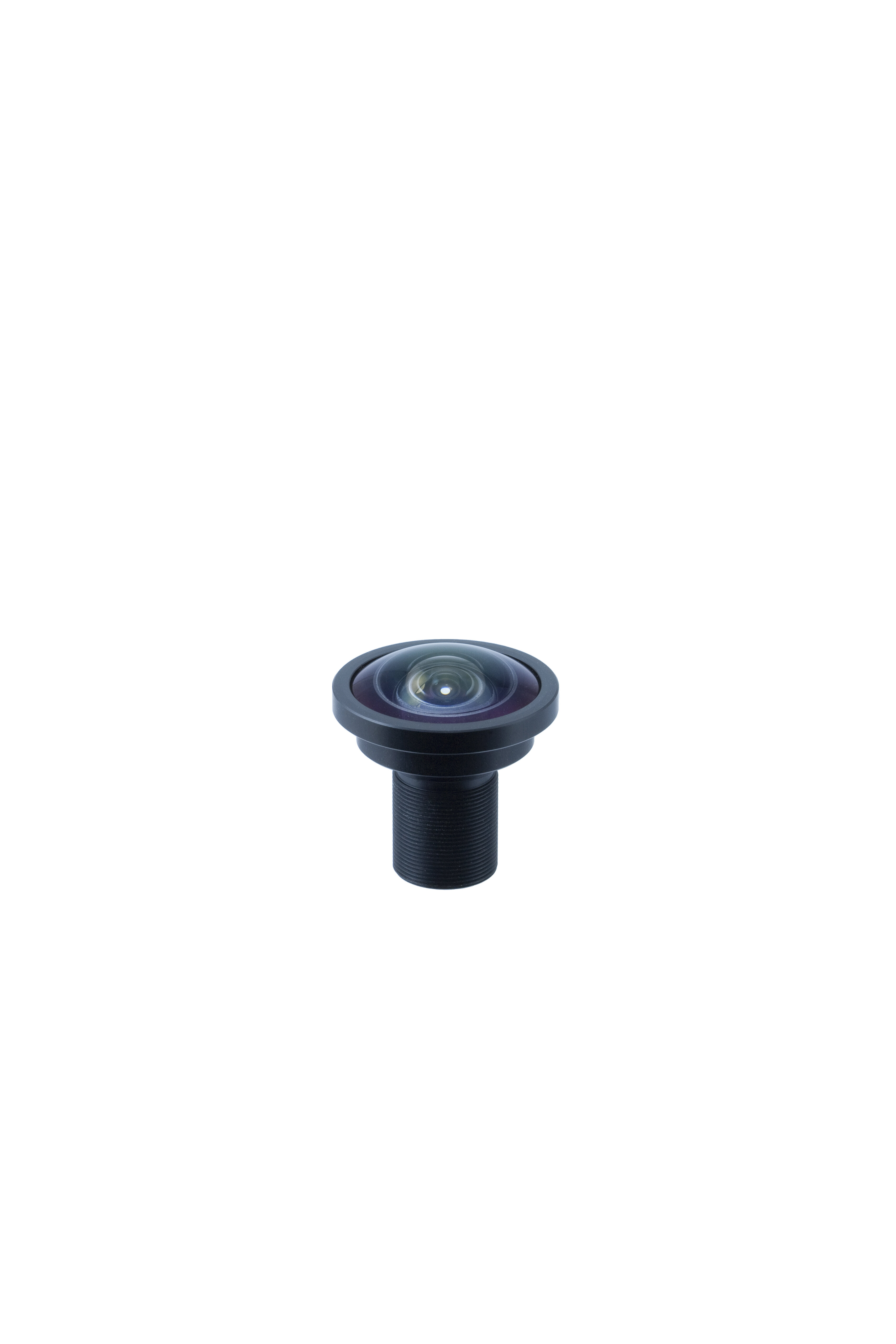

Fisheye Series E2328KRY 1/1.8" 2.3mm 2.8 M12 FIX -
2D DXF
3D STEP IGES

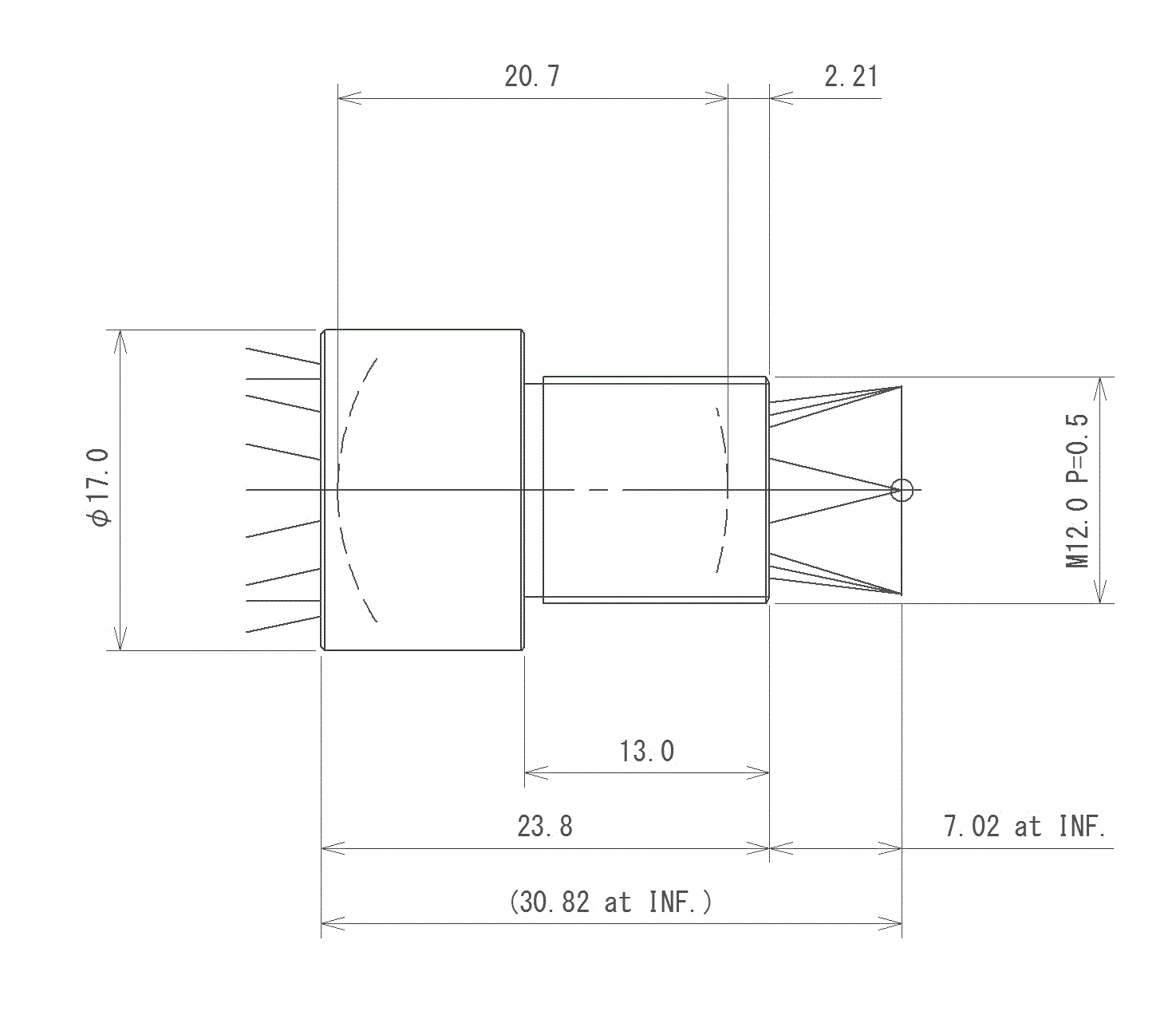

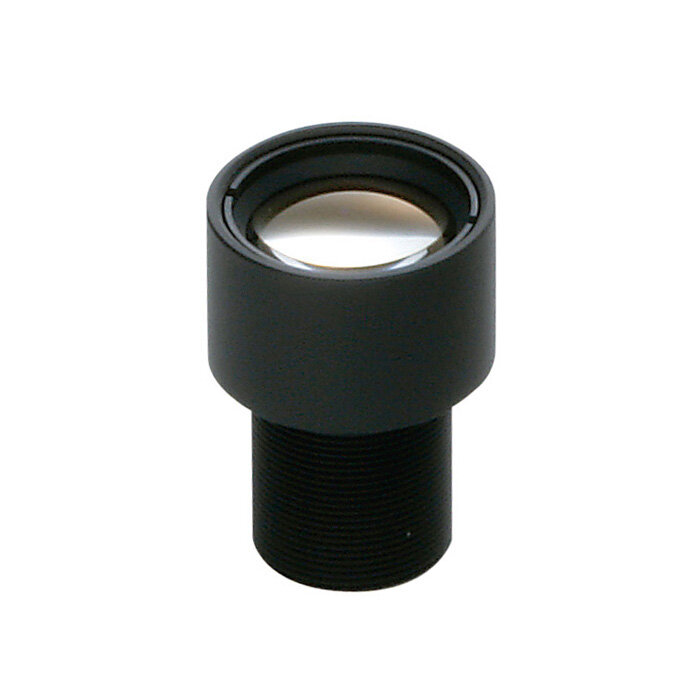

S-Mount Fix Focal Series H2520KP 1/2" 25mm 2.0 M12 FIX -
2D DXF
3D STEP IGES

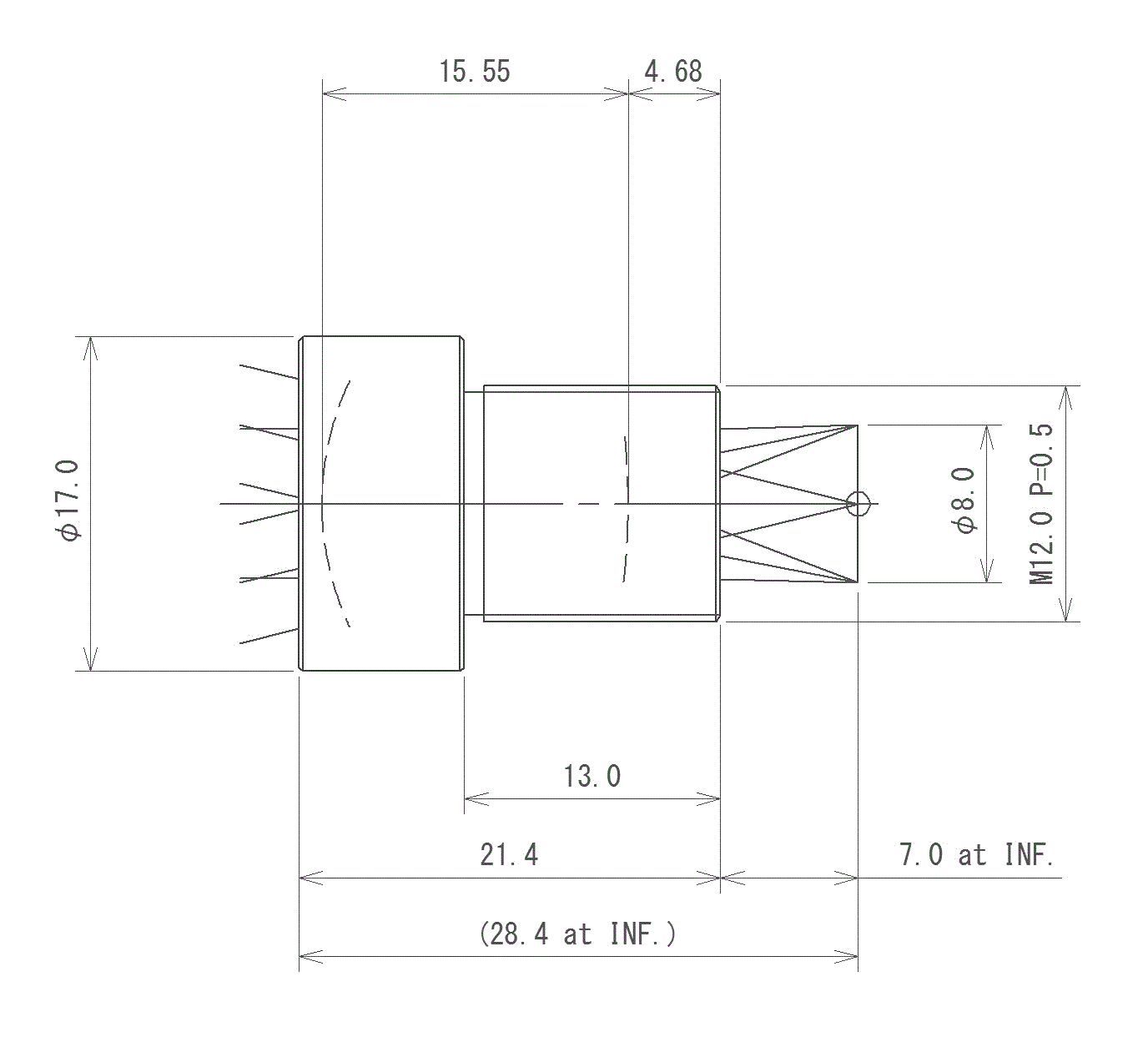

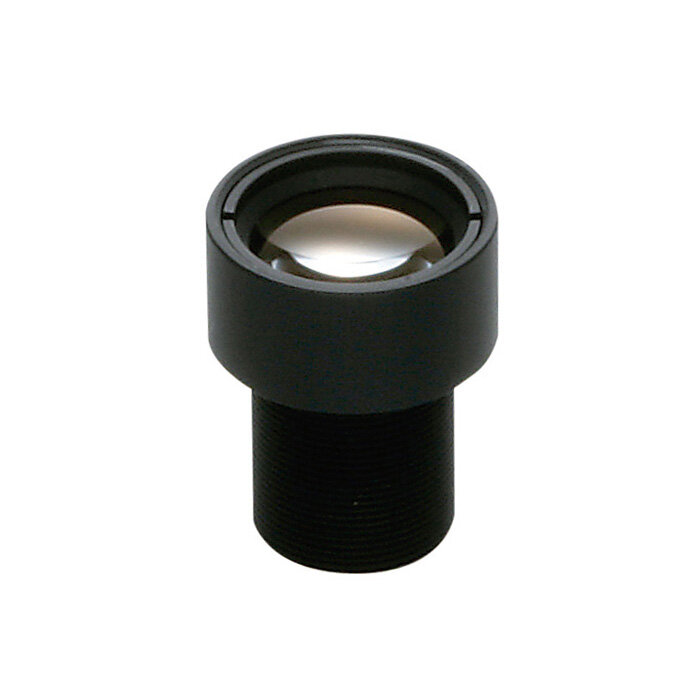

S-Mount Fix Focal Series H1620KP 1/2" 16mm 2.0 M12 FIX -
2D DXF
3D STEP IGES

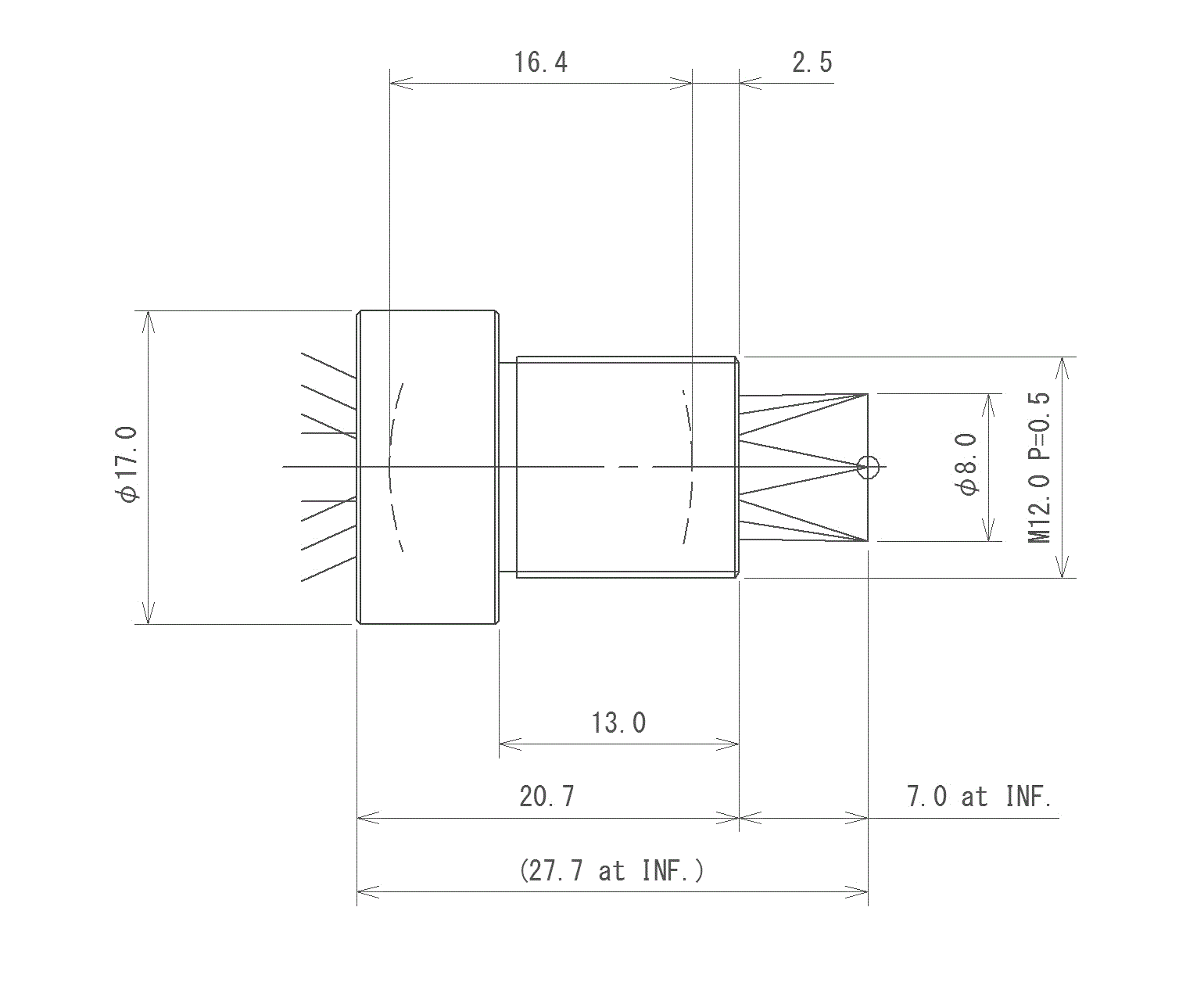

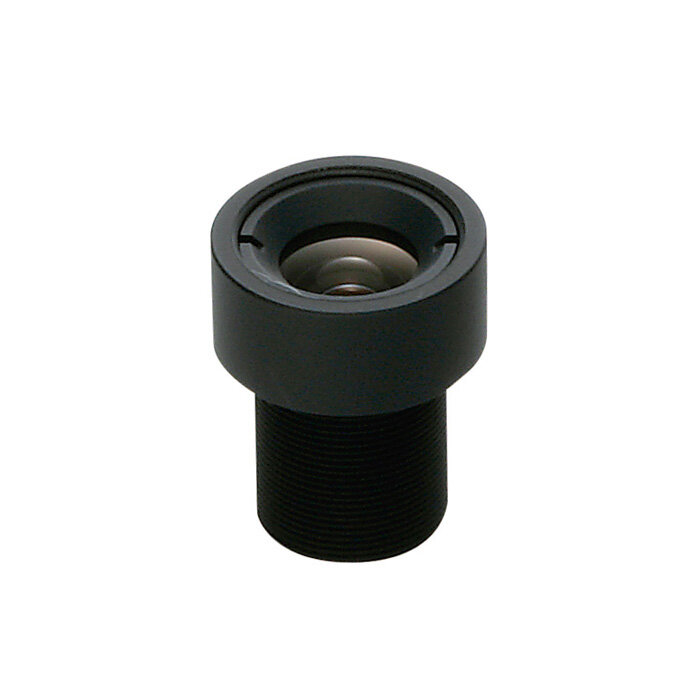

S-Mount Fix Focal Series H0924KP 1/2" 9mm 2.4 M12 FIX -
2D DXF
3D STEP IGES

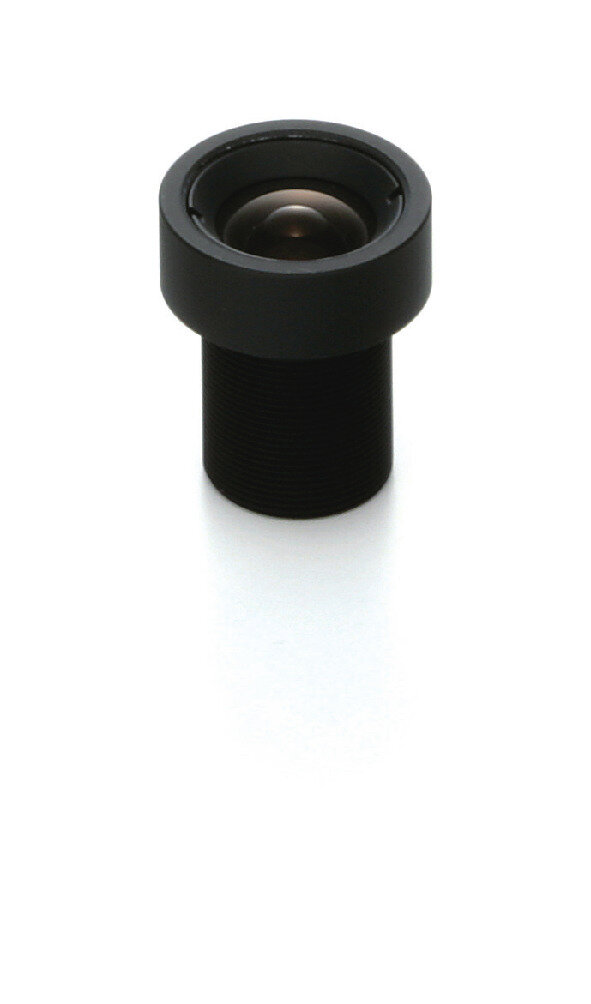

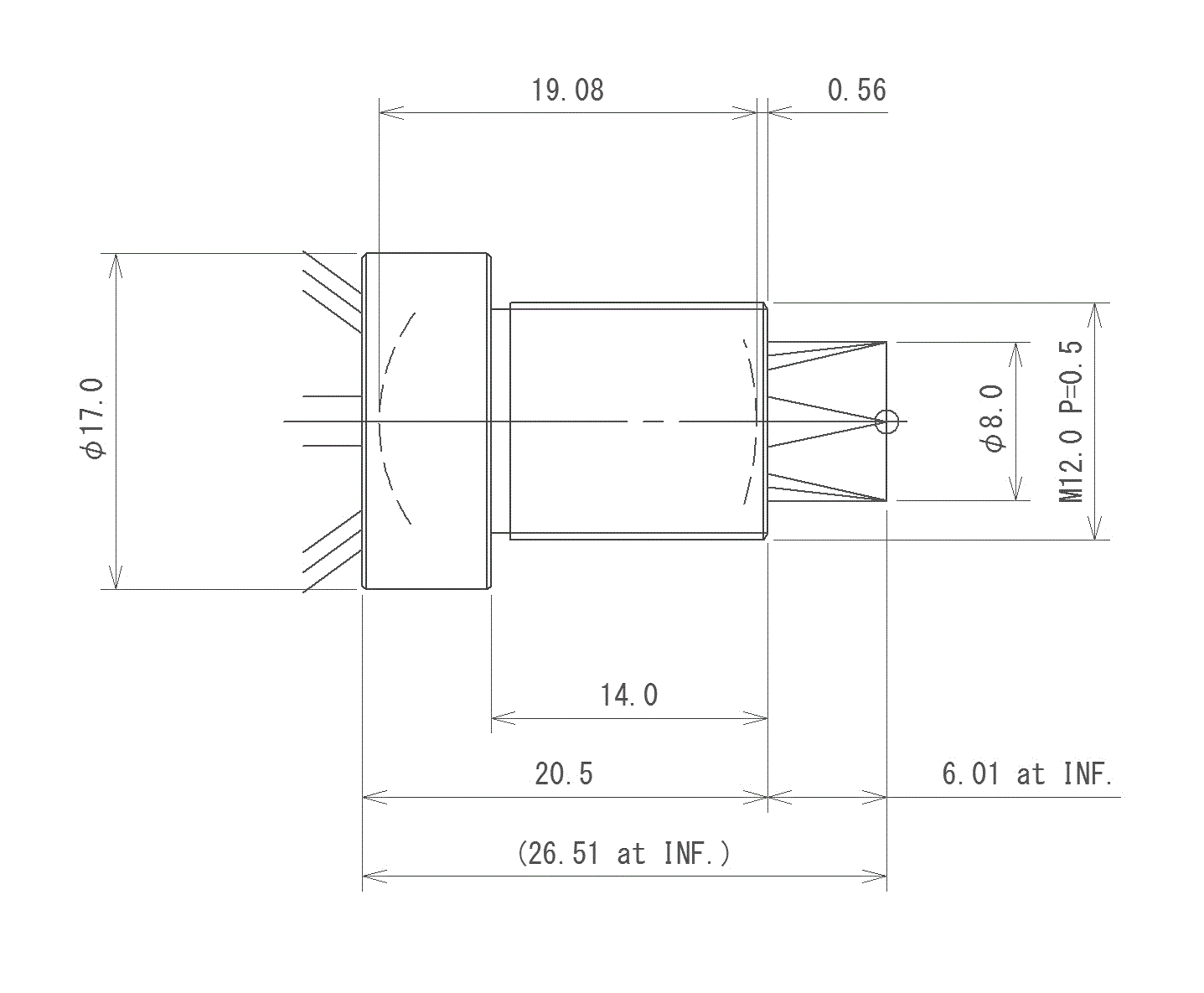

S-Mount Fix Focal Series H0624KP 1/2" 6mm 2.4 M12 FIX -
2D DXF
3D STEP IGES

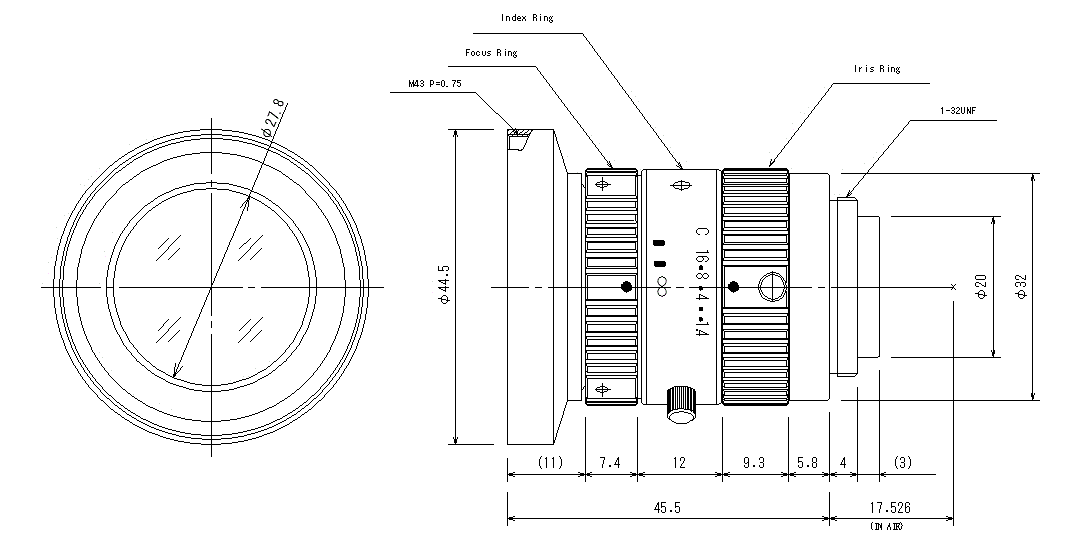

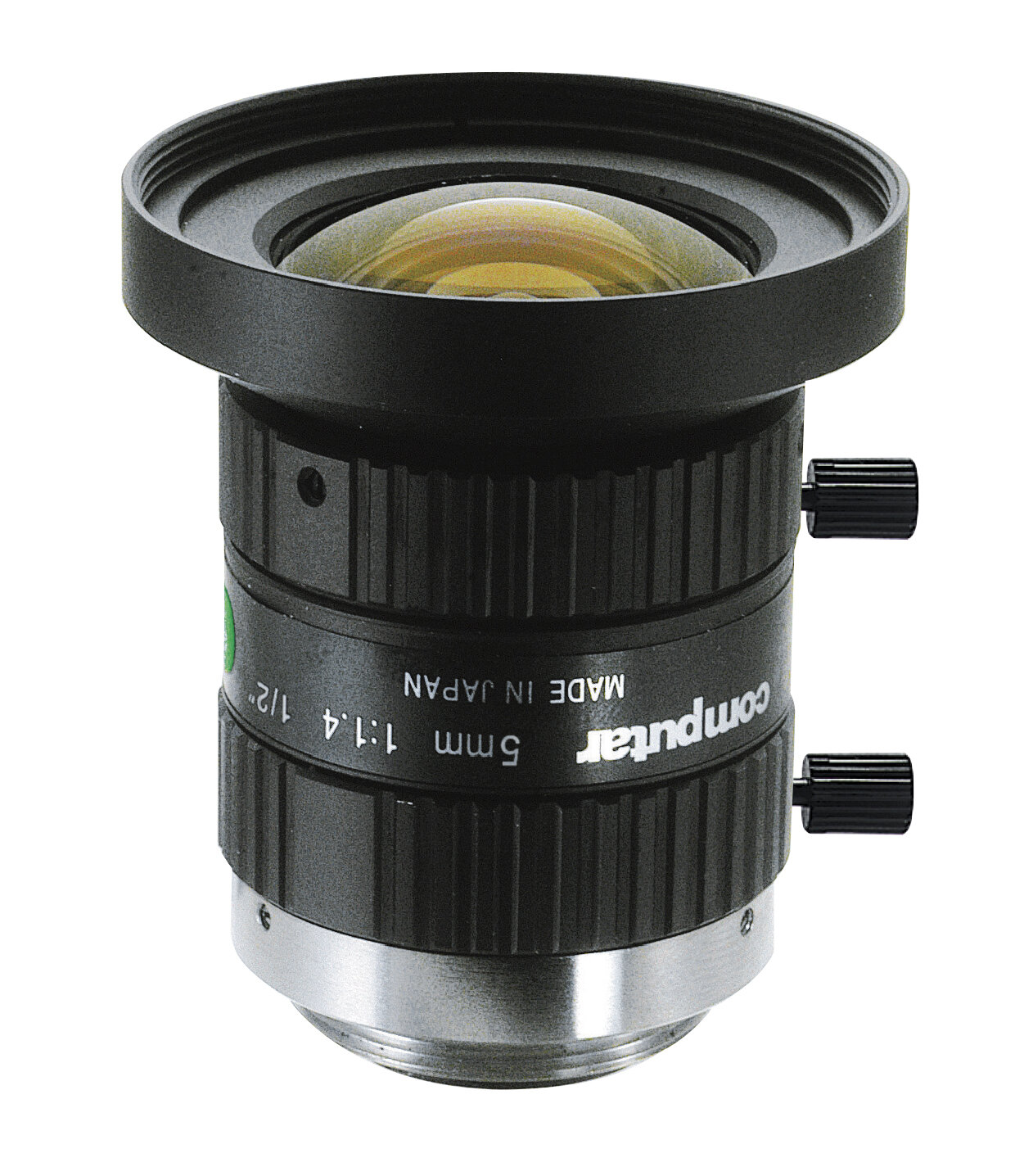

MP2 Series H0514-MP2 1/2" 5mm 1.4 C Manual -
2D DXF
3D STEP IGES

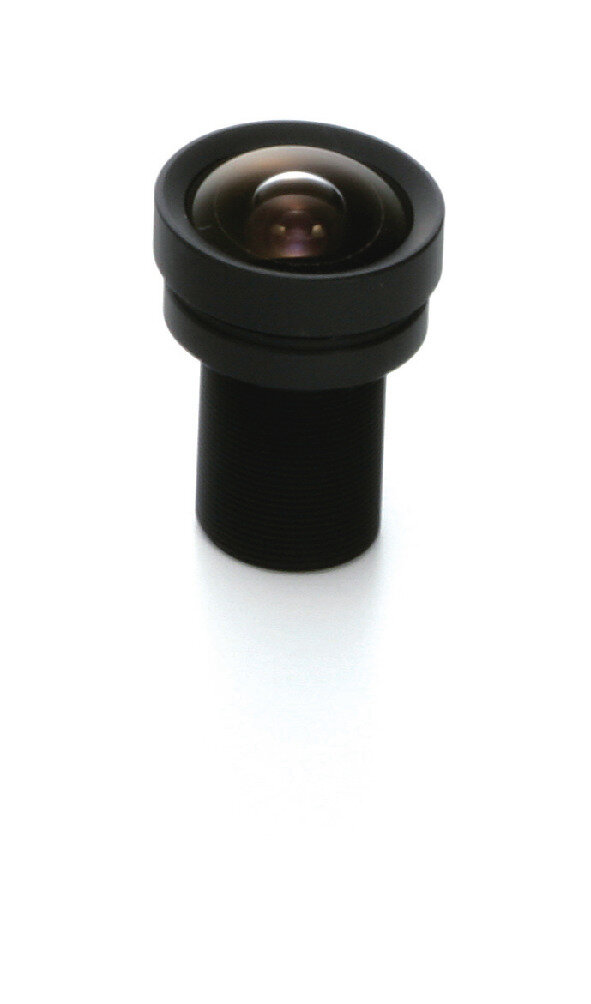

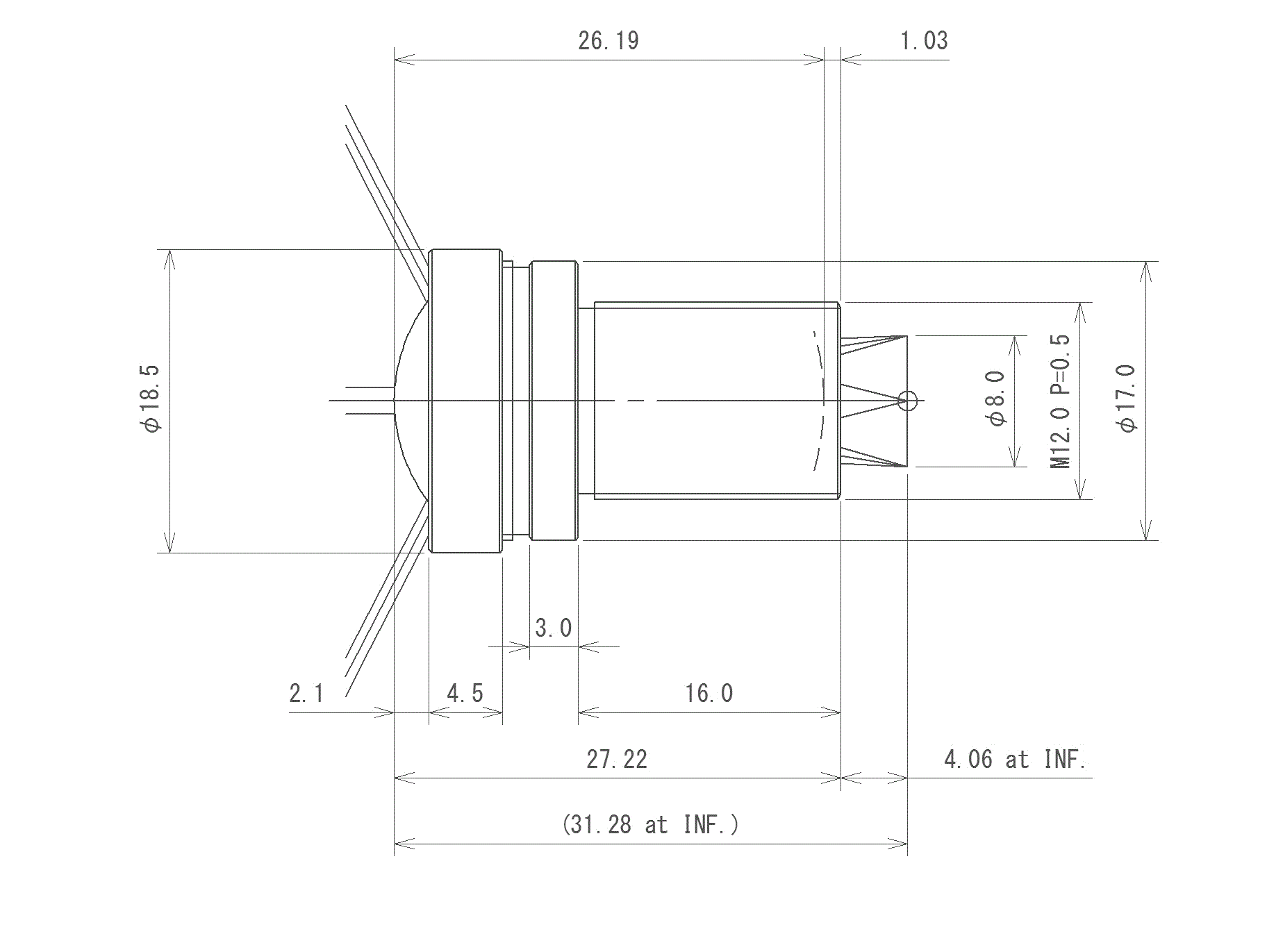

S-Mount Fix Focal Series H0320KP 1/2" 3mm 2.0 M12 FIX -
2D DXF
3D STEP IGES

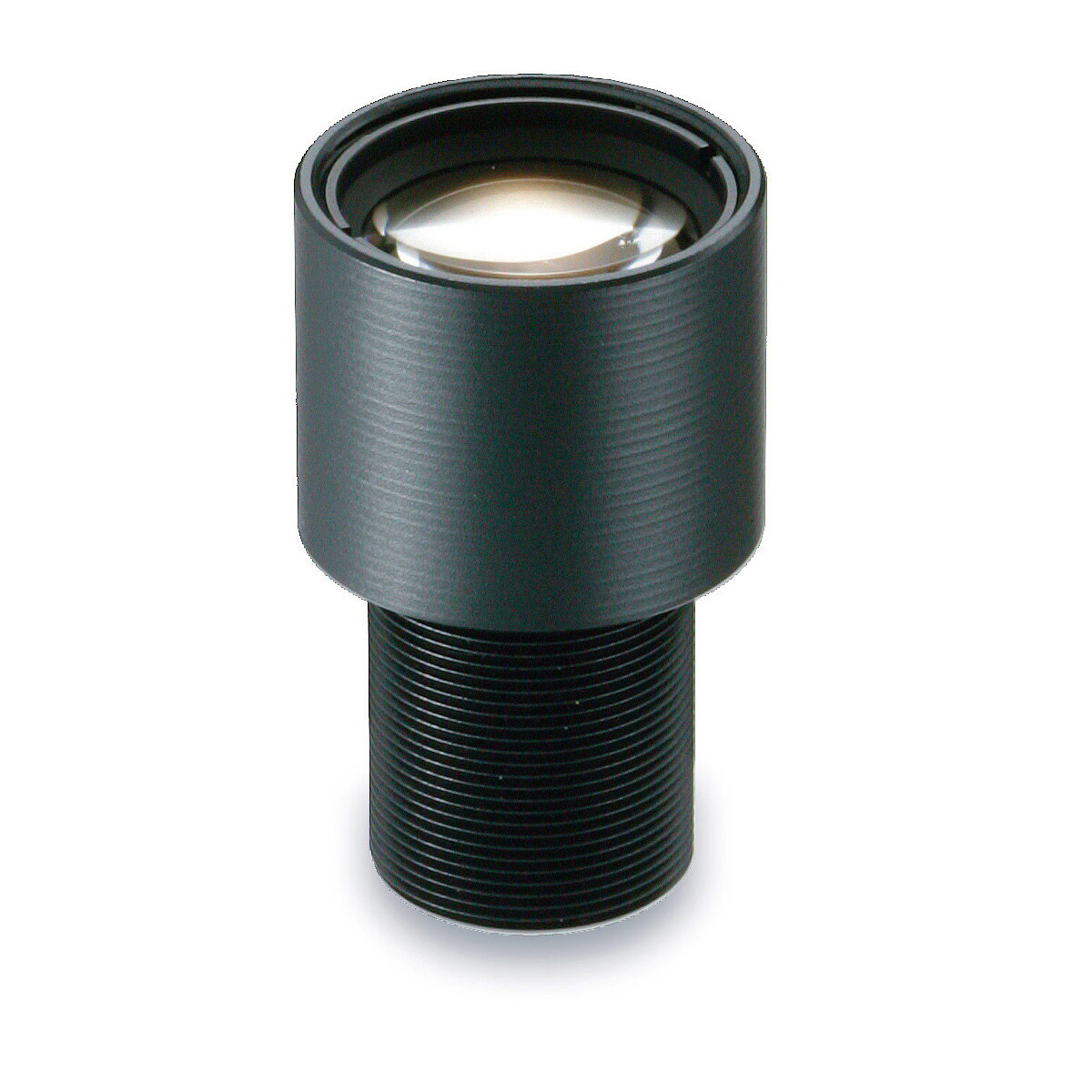

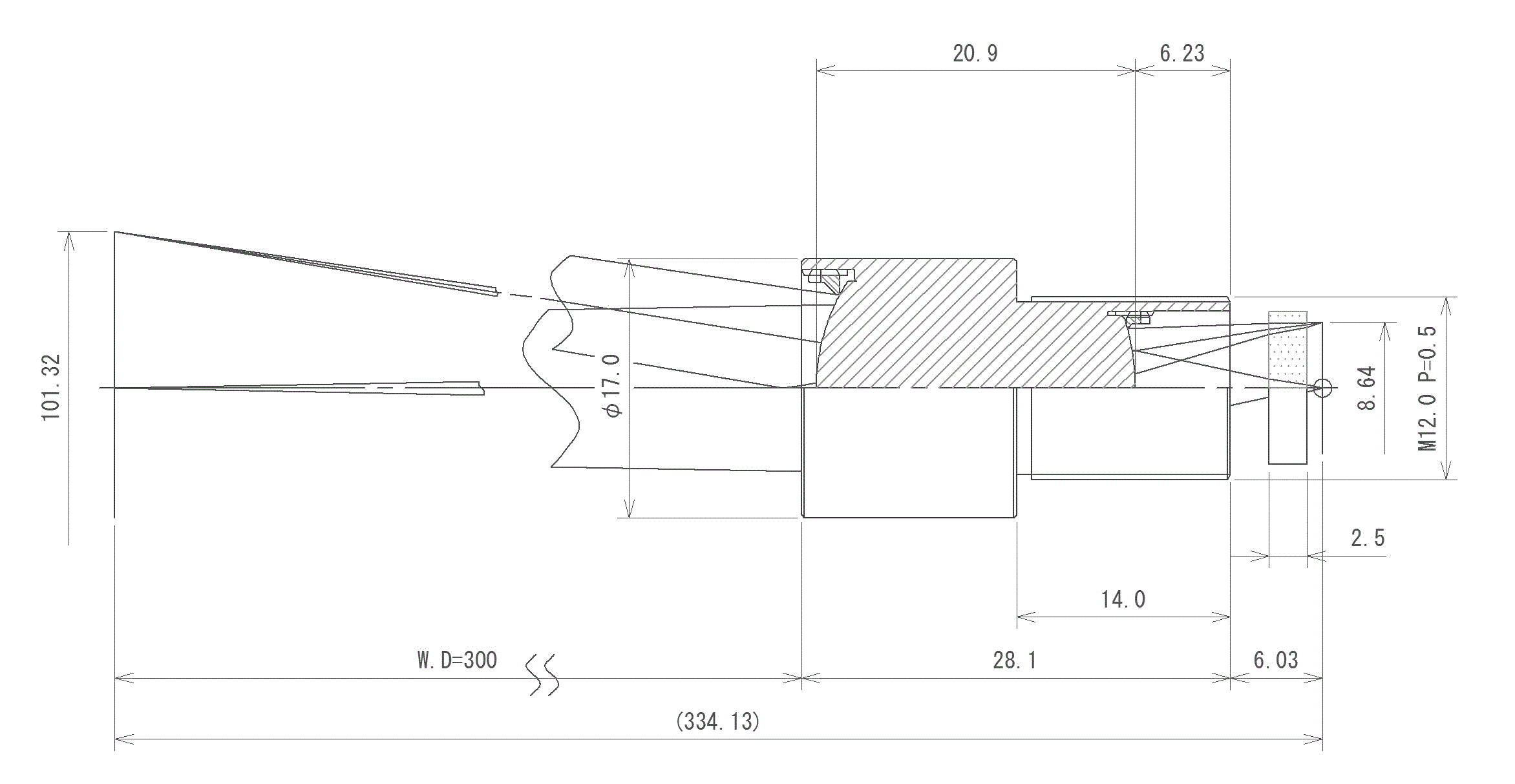

S-Mount Fix Focal Series E2520KV 1/1.8" 25mm 2.0 M12 FIX -
2D DXF
3D STEP IGES

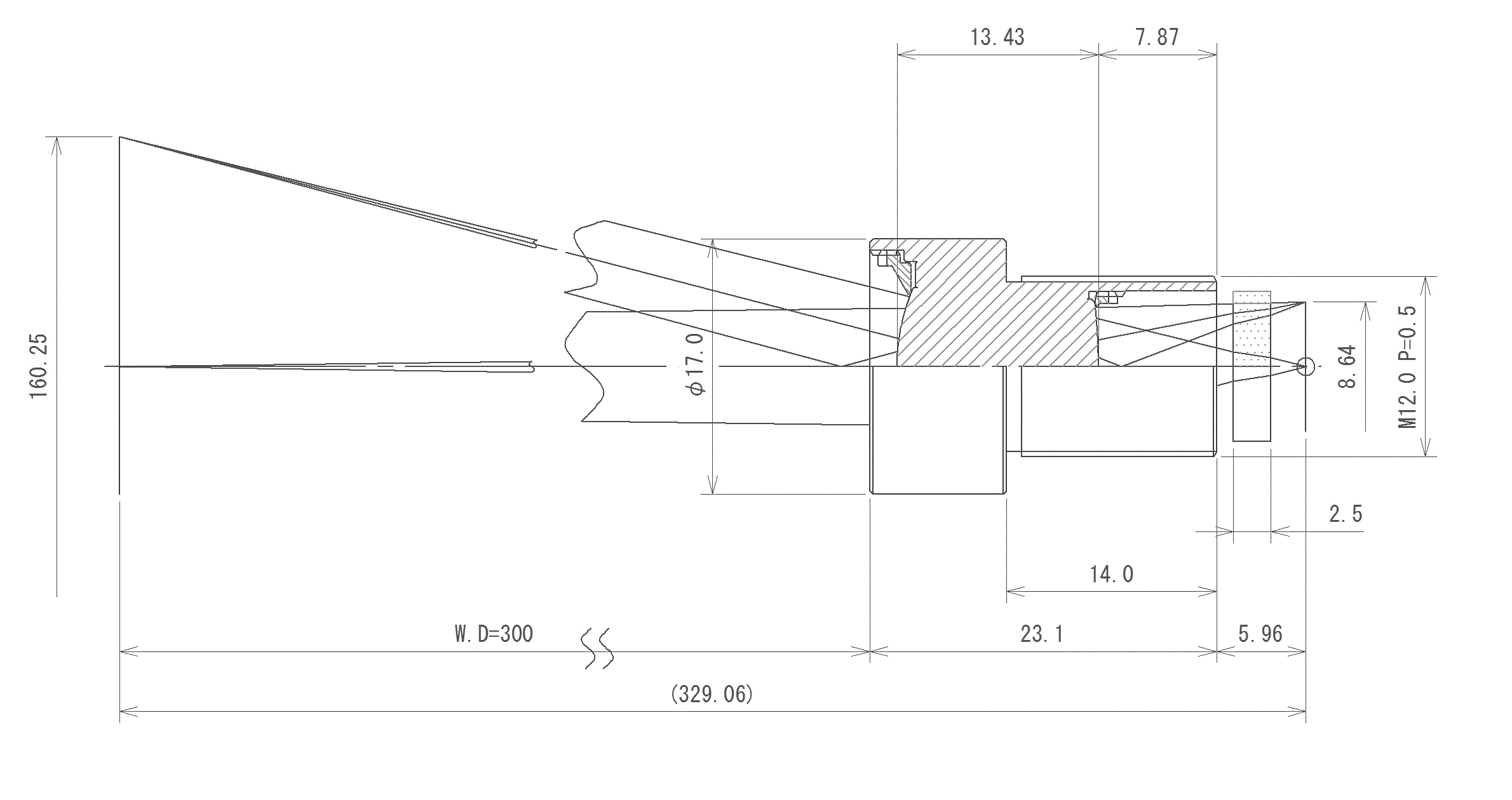

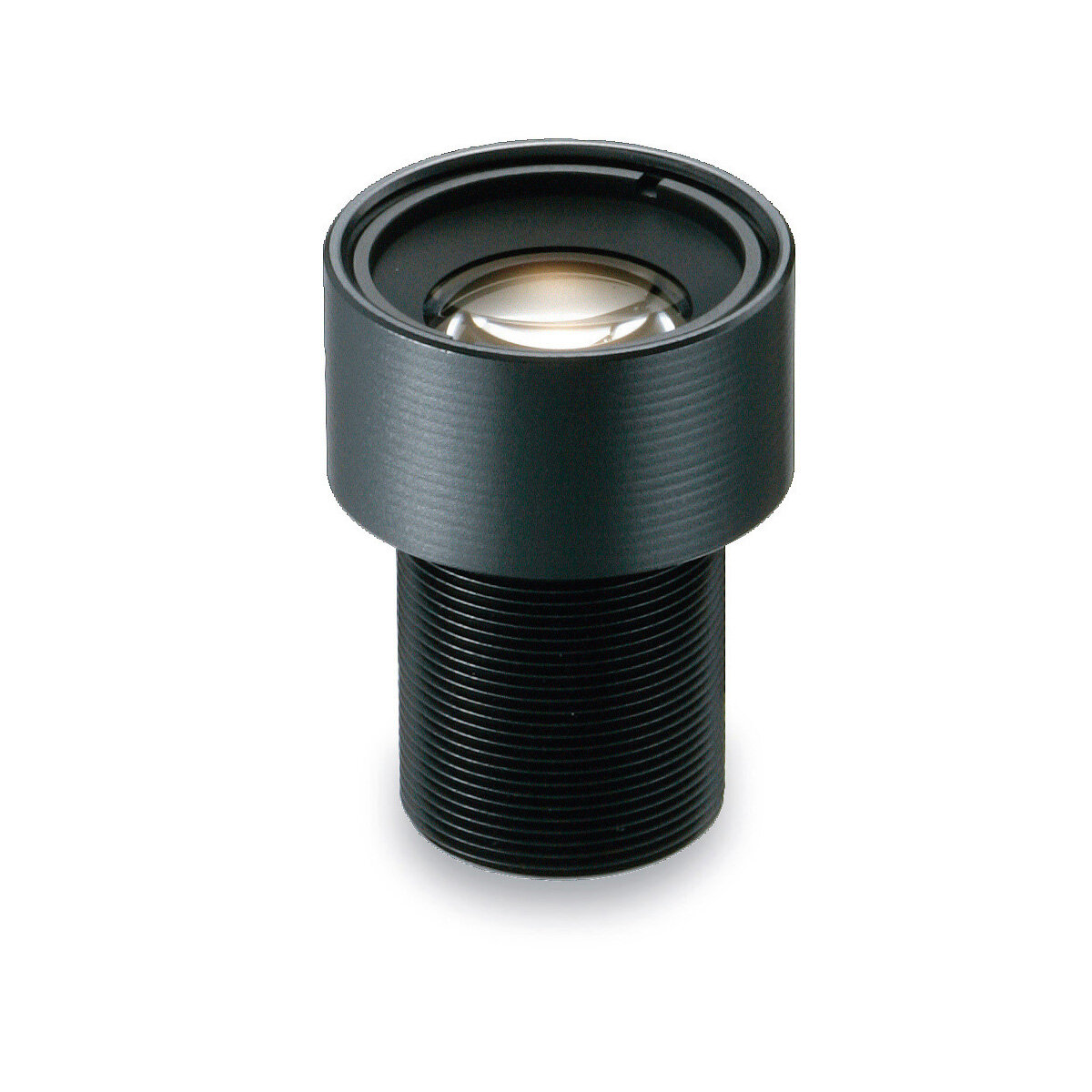

S-Mount Fix Focal Series E1620KV 1/1.8" 16mm 2.0 M12 FIX -
2D DXF
3D STEP IGES

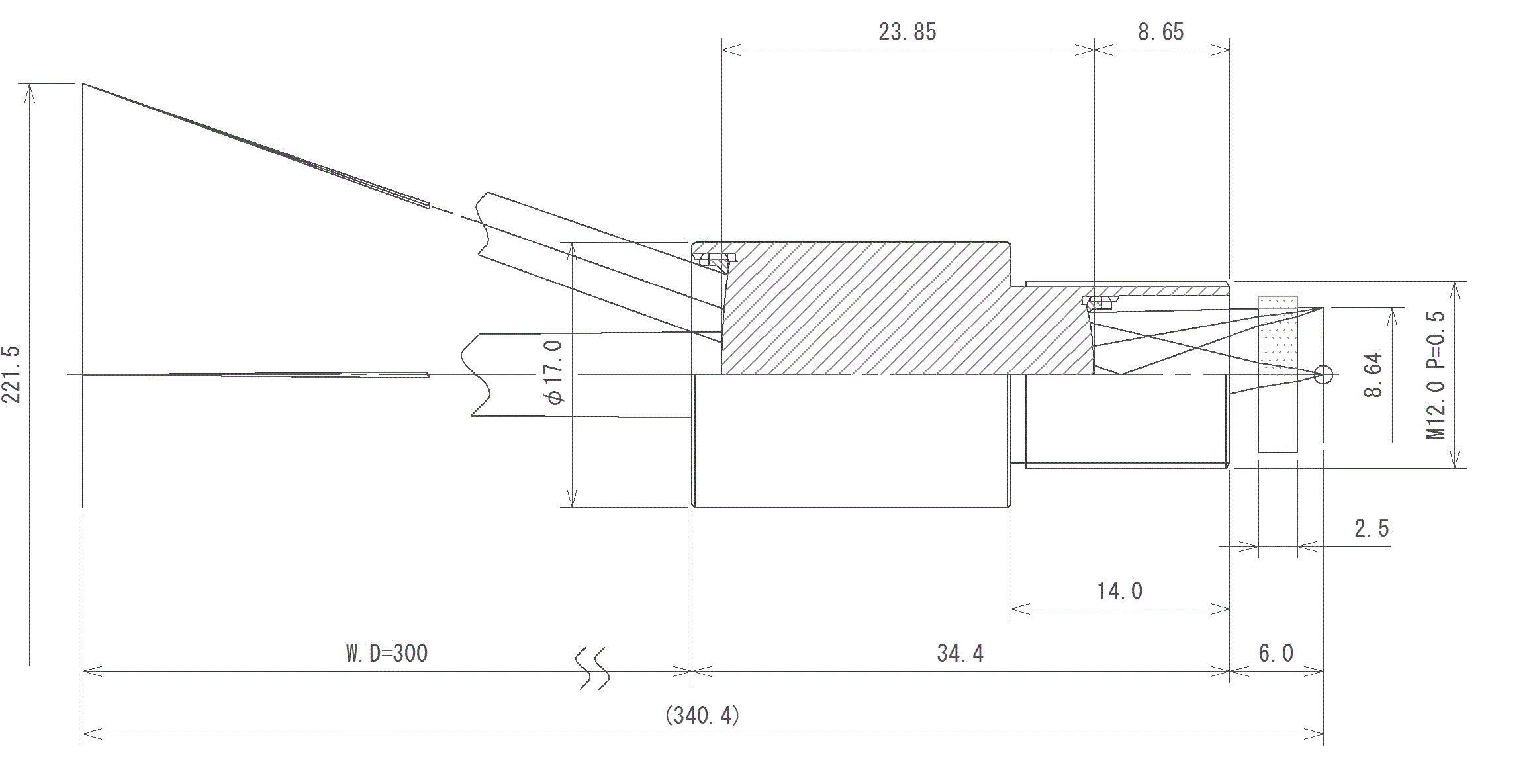

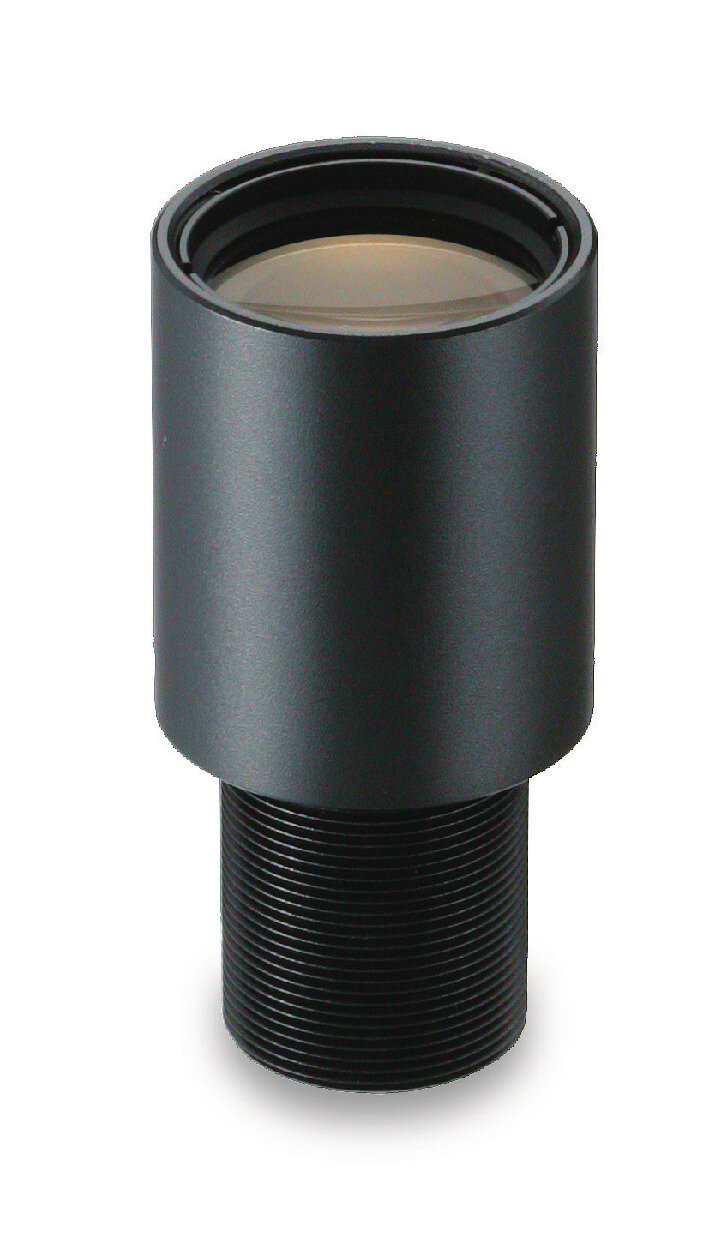

S-Mount Fix Focal Series E1220KV 1/1.8" 12mm 2.0 M12 FIX -
2D DXF
3D STEP IGES
LWIR Wide-angle Series 4.4mm f/1.25 VGA (12µm) 4.4mm 1.25 M20 FIX -
2D DXF
LWIR Wide-angle Series 9.6mm f/1.0 VGA (12µm) 9.6mm 1.0 M25 FIX -
2D DXF
right

1-20 / 223
