You can download drawings and technical information if you scroll to the right of the table.

  • Sensor Size
    • 1/1.4
  • Focal Length
    • 8mm
    • 12mm
    • 16mm
    • 50mm
    • 35mm
    • 25mm
  • Resolution
    • 3MP
    • 5MP
  • Mount
    • C
  • Lens Type
    • Monofocal
  • Iris
    • Manual
  • Other
    • IR Corrective
    • SWIR Range
    • LWIR Range
    • Defog
    • Fisheye
    • Ruggedized
    • i-CS
    • LensConnect
    • Zoom/Focus Control
    • Iris Control
    • Made-To-Order
  • Solutions
    • Machine Vision
    • Security
    • ITS
    • Development for New Fields

Model List

You can download drawings and technical information if you scroll to the right of the table.

left
Model name
Sensor Size
Focal Length
F-Number
Working Distance
Distortion
Weight
Images
Specification
CAD data
Technical data
date resolution image circle
M5018-APVSW 1/1.4 50mm 1.8 0.2m - Inf. 0.2%(y=5.7) 174g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 3MP 11.4
M3518-APVSW 1/1.4 35mm 1.8 0.15m - Inf. 0.0%(y=5.7) 199g
2D DXF
3D STEP IGES
2021-01-05 16:56:05 5MP 11.4

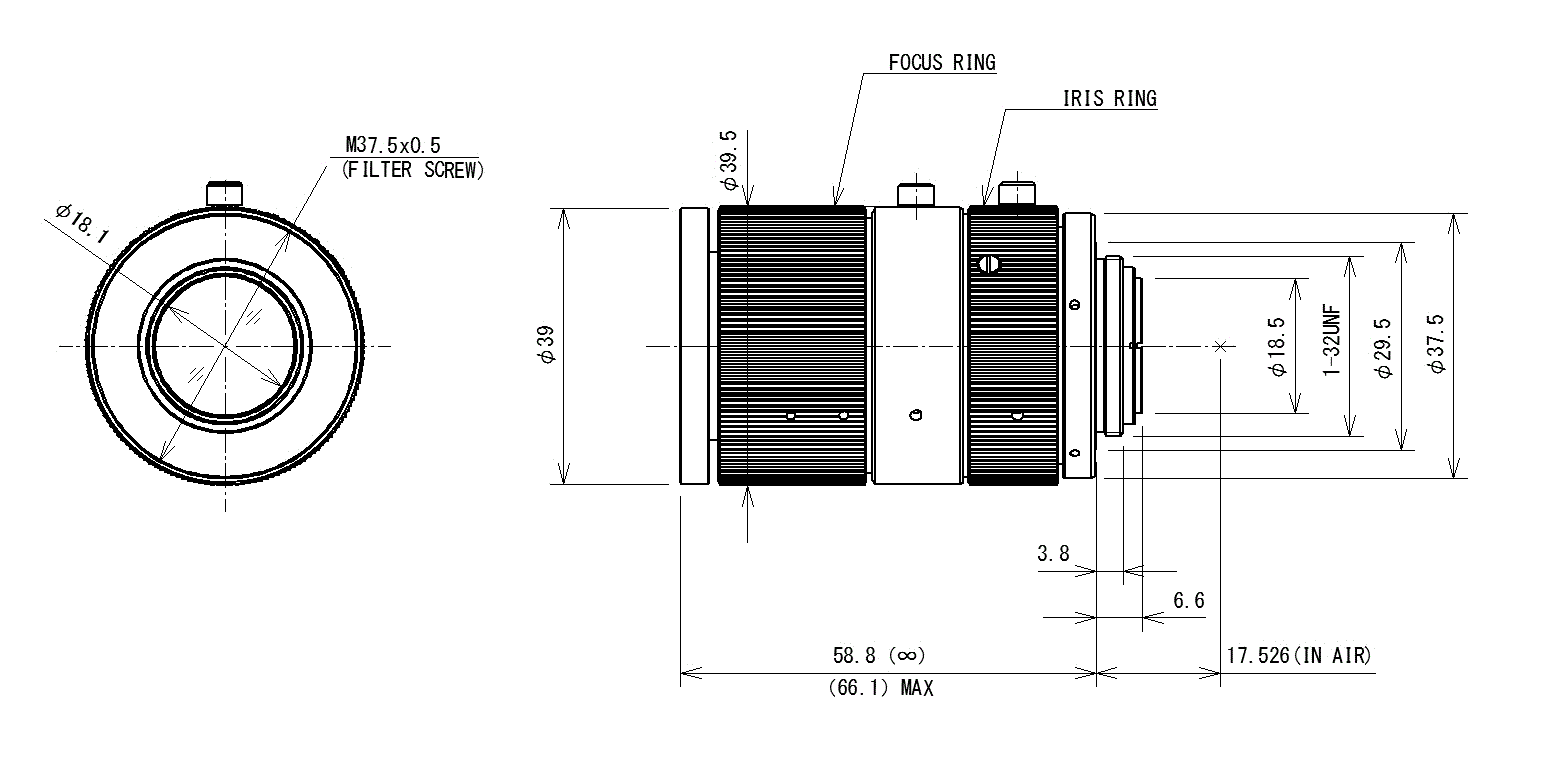

M2518-APVSW2 1/1.4 25mm 1.8 0.1m - Inf. 0.0%(y=5.7) 159g
2D DXF
3D STEP
2021-01-05 16:56:04 5MP 11.4

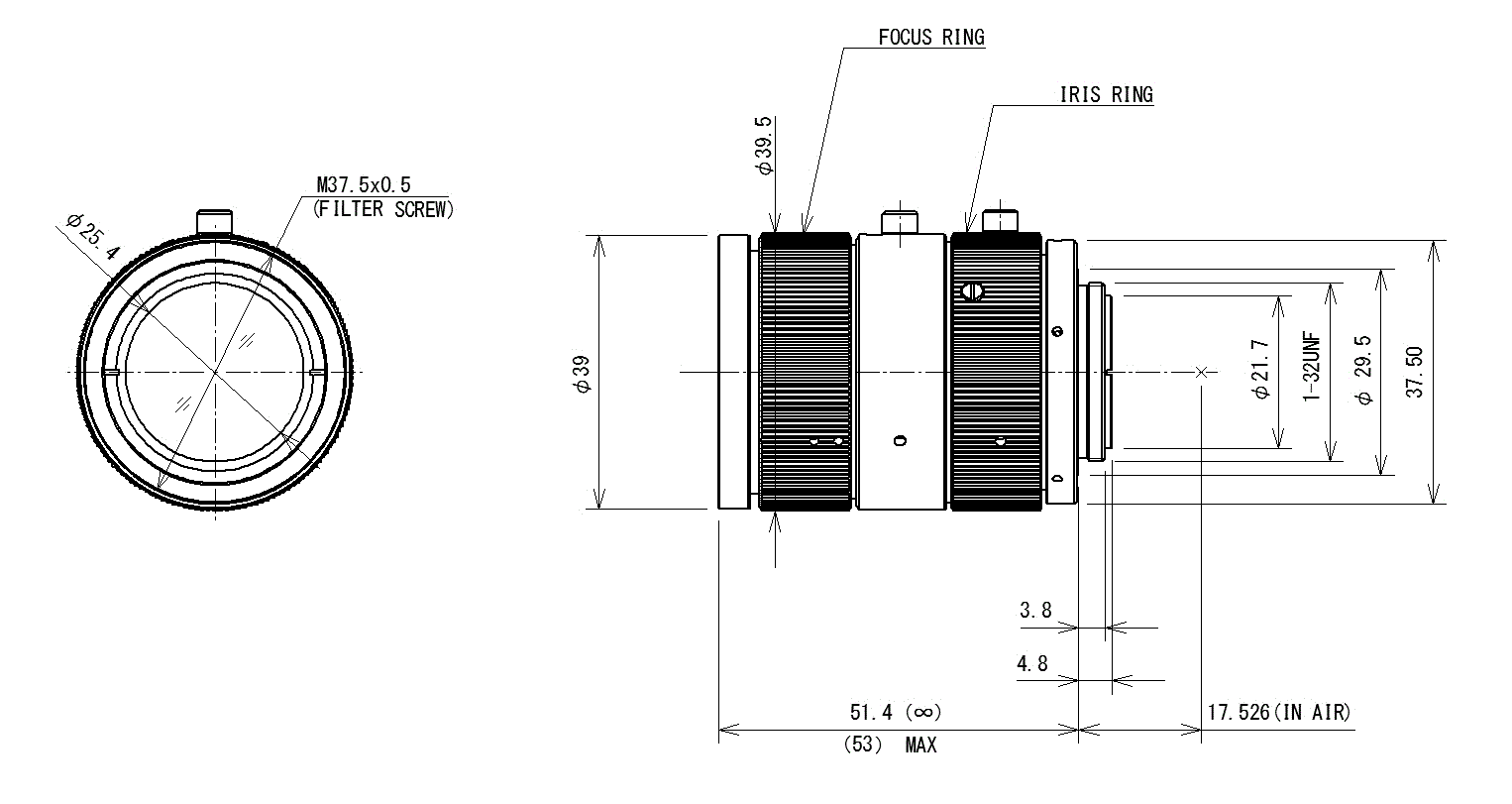

M1618-APVSW2 1/1.4 16mm 1.8 0.1m - Inf. 0.1%(y=5.7) 170g
2D DXF
3D STEP
2021-01-05 16:56:04 5MP 11
M1218-APVSW2 1/1.4 12mm 1.8 0.1m - Inf. 0.1%(y=5.7) 163g
2D DXF
3D IGES
2021-01-05 16:56:03 5MP 11.4

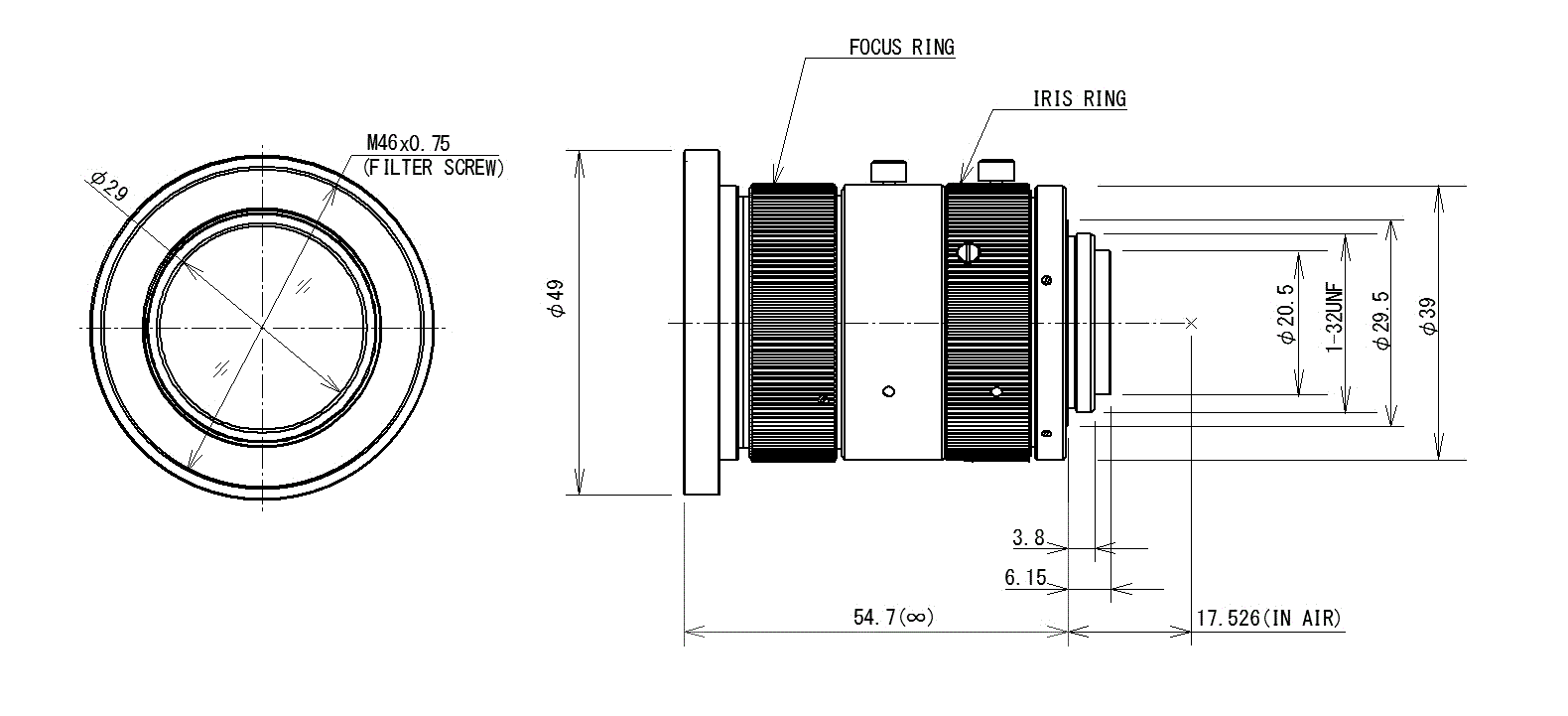

M0818-APVSW2 1/1.4 8mm 1.8 0.1m - Inf. 0.6%(y=5.7) 171g
2D DXF
2021-01-05 16:56:02 5MP 11
right
Industrial Lenses General Catalogue

You can download Computar’s Industrial Lenses General Catalogue.
Click on the link below and fill in the required information.

Series Catalogue

These are catalogue for individual Computar products.
